Dell Inspiron 15 N5040 Hard Drive Replacement

Автор: Terrence15
  • Комментарии: 3
Dell Inspiron 15 N5040 Hard Drive Replacement

Сложность

Easy

Шаги

7

Необходимое время

2 - 5 минут

Введение

In this guide, we will be showing you how to remove and replace the Hard Drive.

Инструменты

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in "Before You Begin".

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

  2. SmVGEEYLBr4ZWFuJ

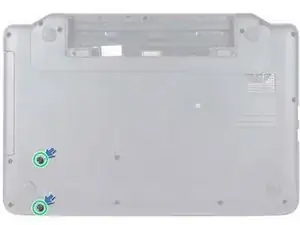

    • Remove the two screws from the computer base.

    How the f do you go from remove these two screws to oh look the back’s been removed? Looks like there’s a big chunk of instructions missing!

    Mark Phillips -

  3. GtPIEKDtcKQfHpnV

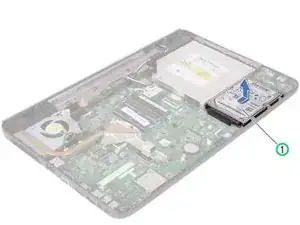

    • Slide the hard drive to the right to disconnect it from the connector on the system board.

    Missing instructions on how to open case :(

    davidglynn -

  4. 6dLRNcUZadPt6xcM

    • Lift the hard drive out of the computer base.

  5. 1XbT3EbIHADNSqEk

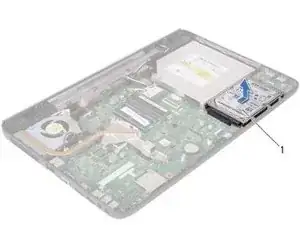

    • Place the NEW hard drive on the computer base.

  6. KIBHyLY3U3UpgrKs

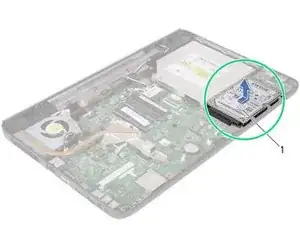

    • Push the hard drive towards the left to connect it to the connector on the system board.

  7. PHrTVbKusSO4l5rE

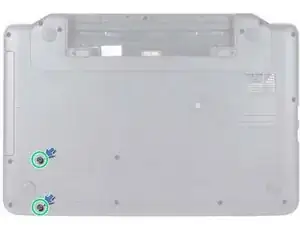

    • Replace the two screws to the computer base.
