Dell Inspiron 15 5576 Gaming Battery Replacement

Автор: Terrence15

Комментарии: 2

Dell Inspiron 15 5576 Gaming Battery Replacement

Сложность

Easy

Шаги

8

Необходимое время

2 - 6 минут

Введение

In this guide, we will be showing you how to remove and replace the Battery.

Инструменты

Phillips #0 Screwdriver

Шаг 1

CYD4bTMOEqHkJJwu

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Remove the battery cable from the routing guides on the computer base.

Шаг 2

BVWx1uZKit1ItviE

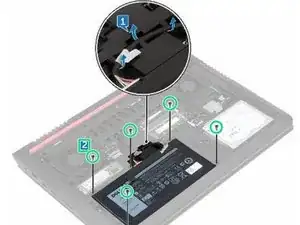

Remove the five screws (M2x5 T8) that secure the battery to the computer base.

Шаг 3

ejFlRaIFdu2ZvxYL

ejFlRaIFdu2ZvxYL

pJt42rHKVxfYMoRG

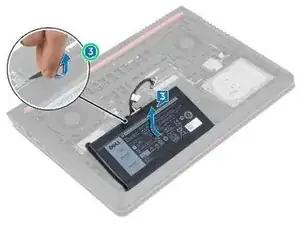

Using the pull tab, lift the battery, along with its cable, off the computer base.

Шаг 4

Turn the computer over, open the display, and press and hold the power button for five seconds to ground the system board.

Шаг 5

e2NqAsYstXYladZt

Slide the NEW battery in the slot on the computer base.

Шаг 6

tJuRpRjaqrULQXBG

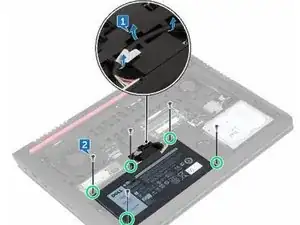

Align the screw holes on the battery with the screw holes on the computer base.

Шаг 7

qBLZZF3LymhwLWk4

Replace the five screws (M2x5 T8) that secure the battery to the computer base.

Шаг 8

gZSxkZPshbyy5beh

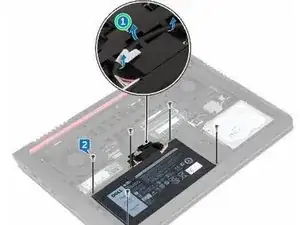

Route the battery cable through the routing guides on the computer base.
