Dell Inspiron 14 3462 Hard Drive Replacement

Автор: Terrence15
  • Комментарии: 0
Dell Inspiron 14 3462 Hard Drive Replacement

Сложность

Easy

Шаги

12

Необходимое время

20 - 40 минут

Введение

In this guide, we will show you how to remove and replace the Hard Drive.

Инструменты

  1. nwUs1RAlurUlkA3R

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • Open the latch, and disconnect the hard-drive cable from the connector on the system board.

  2. 1VTpMoKkeQIOuyJ6

    • Remove the two screws (M2x3) that secure the hard-drive assembly to the palm-rest assembly.

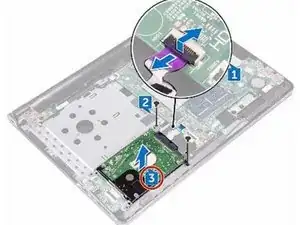

  3. oa653jiQmEsACtmp

    • Lift the hard-drive assembly along with its cable off the palm-rest assembly.

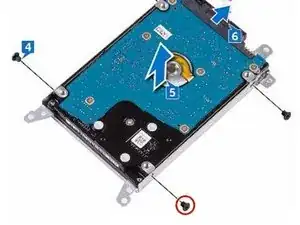

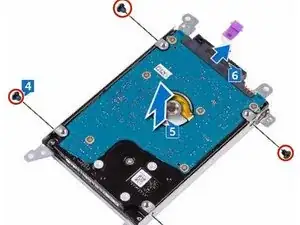

  4. OasmjK36FQXIxLVM
    OasmjK36FQXIxLVM
    puexHIN1gYtFaxoQ

    • Remove the four screws (M3x3) that secure the hard-drive bracket to the hard-drive assembly.

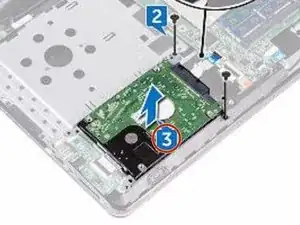

  5. gKMRREHOkUThTyxx

    • Lift the hard-drive assembly off the hard-drive bracket.

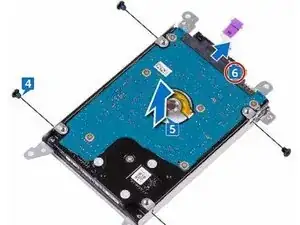

  6. JWBGBUGuPyIJyYnC

    • Disconnect the interposer from the hard drive.

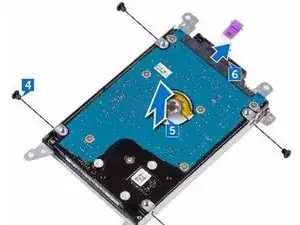

  7. hePHpGFaWrDmFgYU

    • Connect the interposer to the NEW hard drive.

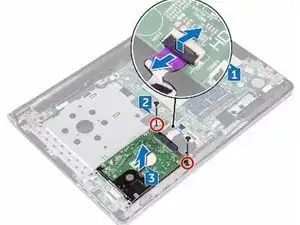

  8. rIFQVt4tJ3M5RJpN

    • Align the screw holes on the hard-drive bracket with the screw holes on the hard-drive assembly.

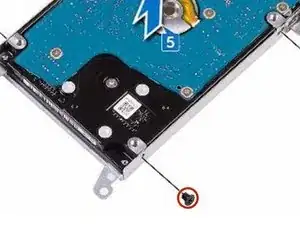

  9. toAWBiBtv1ZjOKDT
    toAWBiBtv1ZjOKDT
    RNR2KFuV1UcA2ZnA

    • Replace the four screws (M3x3) that secure the hard-drive bracket to the hard-drive assembly.

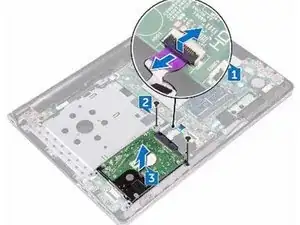

  10. vFZL5dDHH2YpXewH

    • Align the screw holes on the hard-drive assembly with the screw holes on the palm rest and keyboard assembly.

  11. XTCVfBtaxJamRMHF

    • Replace the two screws (M2x3) that secure the hard-drive assembly to the palm-rest assembly.

  12. xmdon6WiwtrNIVnd

    • Slide the hard-drive cable into the connector on the system board and press down the latch to secure the cable.
