Dell Inspiron 11 3169 Display Hinges Replacement

Автор: Terrence15
  • Комментарии: 0
Dell Inspiron 11 3169 Display Hinges Replacement

Сложность

Easy

Шаги

6

Необходимое время

9 - 20 минут

Введение

In this guide, we will be showing you how to remove and replace the Display Hinges.

Инструменты

  1. a5lAkdYsBXqqSjtD
    a5lAkdYsBXqqSjtD
    TyPNYNUWWjCCGMgH

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your computer.

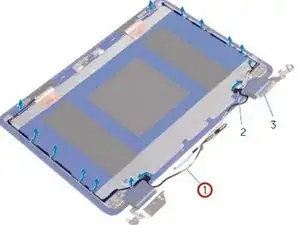

    • Peel the tapes and remove the antenna cables from the routing guide on the hinge cover.

  2. 4IgRpOb21nLnMatE

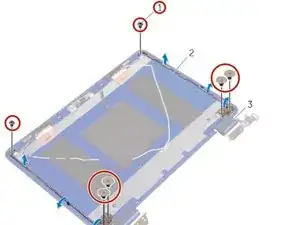

    • Remove the screws that secure the display hinges to the display back-cover and antenna assembly.

  3. 6t6wlZbvmVUAWCed
    6t6wlZbvmVUAWCed
    TefJImJW6FveCbRj

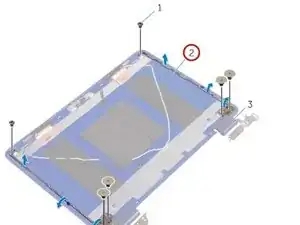

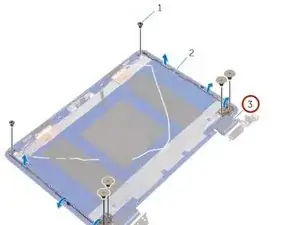

    • Lift the display hinges off the display back-cover and antenna assembly.

  4. AJXMtfp3mNnKI5ed

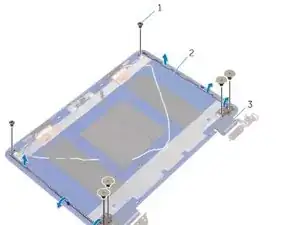

    • Align the screw holes on the NEW display hinges with the screw holes on the display back-cover and antenna assembly.

  5. utOPmdeAraStsJSH

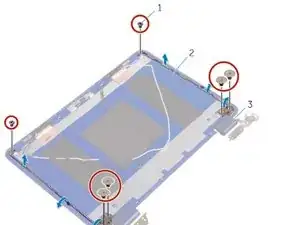

    • Replace the screws that secure the display hinges to the display back-cover and antenna assembly.

  6. YeEJ3hCZLpJXsejX
    YeEJ3hCZLpJXsejX
    HhClNfIoHlAh1PJT

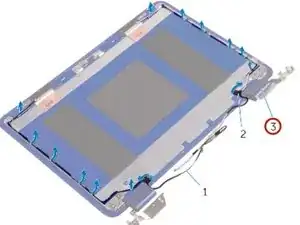

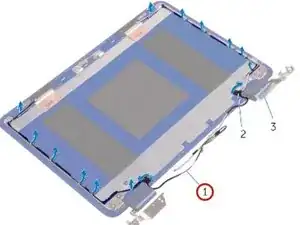

    • Route the antenna cables through the routing guide on the hinge cover and secure it in place.

Заключение

To reassemble your device, follow these instructions in reverse order.
