Dell Inspiron 15-7569 Solid State Drive Replacement

Автор: Lucas Fisher
  • Комментарии: 1
Dell Inspiron 15-7569 Solid State Drive Replacement

Сложность

Moderate

Шаги

3

Необходимое время

4 минут

Введение

It is advised to proceed with caution when carrying out this procedure. Damage to the sensitive electronic components may occur.

  1. YprrEJEZUL4d4PhQ
    YprrEJEZUL4d4PhQ
    VF2NVHJERHlUyvyX
    wDOCwqdCWDPq4CGB

    • Remove the (10) P58F black screws on the back cover using the Phillips #0 screwdriver.

    • After removing the screws, remove the back cover using a plastic or metal spudger.

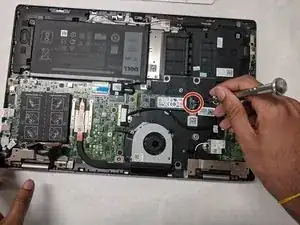

  2. C4NCpkHNpG26kHE6

    • Unscrew the 3.7mm screw that attaches the solid state drive with the Phillips #0 screwdriver.

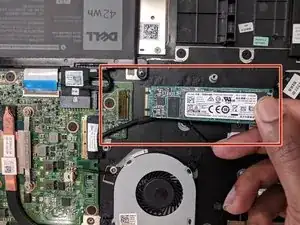

  3. DiiLJbyA5xJegtaM

    • Gently remove the solid state drive.

Заключение

To reassemble your device, follow these instructions in reverse order.
