Dell Alienware M17x R2 Display Assembly Replacement

Автор: Terrence15
  • Комментарии: 0
Dell Alienware M17x R2 Display Assembly Replacement

Сложность

Easy

Шаги

4

Необходимое время

9 - 25 минут

Введение

In this guide, we will show you how to remove and replace the Display Assembly.

Инструменты

  1. PXFSpYiTaB6YJnRm

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid damage to the display, you must not disassemble your Edge-to-Edge display assembly.

    • Remove the four screws (two from each hinge) that secure the display assembly to the computer base.

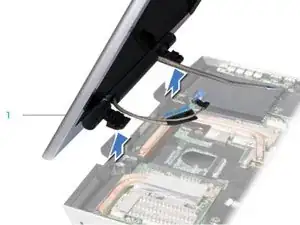

  2. vDHSDv2bTOhdJUxF

    • Bend the display assembly towards the computer base at a 45-degree angle and lift the display assembly off the computer.

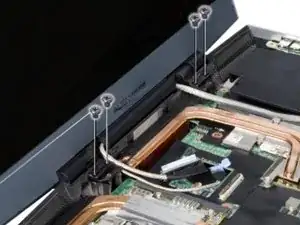

  3. AxAKOlVWs3Thtadg

    • Align the screw holes on the display hinges with the computer base.

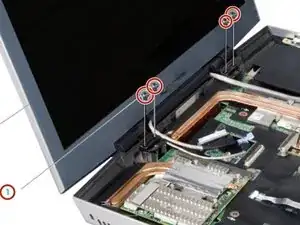

  4. JdACOeWSTCPIWYwd

    • Replace the four screws (two on each hinge) that secure the display assembly to the computer base.

Заключение

To reassemble your device, follow these instructions in reverse order.
