Dell Alienware 18 Battery Pack Replacement

Автор: darrius
  • Комментарии: 1
Dell Alienware 18 Battery Pack Replacement

Сложность

Moderate

Шаги

7

Необходимое время

10 - 15 минут

Введение

This guide shows how to remove and replace the battery pack for the Dell Alien 18 laptop.

  1. rjOIwpPYhYXfBlVX

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin.

  2. 1UYngLN5OSTt5mxR

    • Use a Phillips screwdriver to remove the three screws securing the base cover.

  3. inrv114W2iAnknUP

    • Slide the base cover towards the rear of the computer and lift it off the computer base.

  4. BsH1meCDbGQwGCMh

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin.

  5. SLtyXxdd3ZDBhQCa

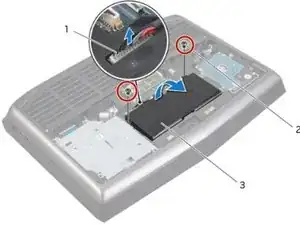

    • Use a Phillips screwdriver to remove the two screws securing the battery to the computer base.

  6. WkBRU6fqKXNBtOR3

    • Disconnect the battery cable from its connector by pulling it straight up from its socket.

  7. q2lVAYWKhgg6lVjI

    • Remove the battery from its recess.

Заключение

For optimal performance, after completing this guide, calibrate your newly installed battery.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
