Dell Alienware 17 Secondary Hard-Drive Replacement

Автор: Terrence15
  • Комментарии: 0
Dell Alienware 17 Secondary Hard-Drive Replacement

Сложность

Easy

Шаги

14

Необходимое время

10 - 15 минут

Введение

In this guide, we will be showing you how to remove and replace the Secondary Hard-Drive.

Инструменты

  1. pwZQt3pEGGcSkxJo

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions After Working Inside Your Computer.

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is On or in Sleep state.

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Remove the screws that secure the hard-drive assembly to the computer base.

  2. tBCegWkuNWCZEHSf
    tBCegWkuNWCZEHSf
    HtUPxhSOcPxWKEKu

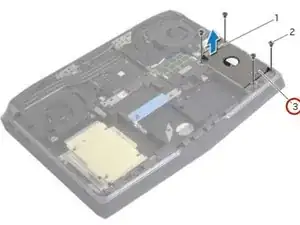

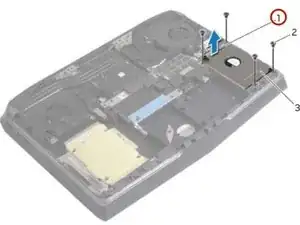

    • Using the pull-tab, gently lift the hard-drive assembly.

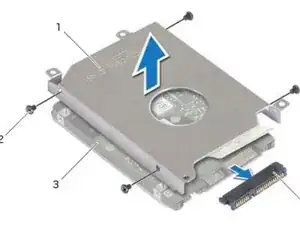

  3. xVkrgZPUgFBTDmJd

    • Lift the latch and disconnect the hard-drive cable from the system board.

  4. ZjQQPt1U2iiEg4Td

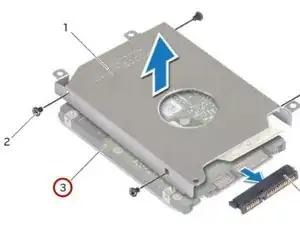

    • Lift the hard-drive assembly off the computer base.

  5. 1TgGKp5sVPuLkSQG

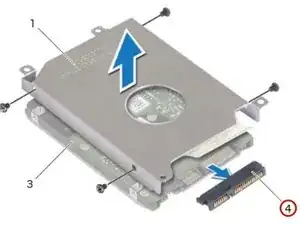

    • Disconnect the interposer from the hard drive.

  6. 531EMSkOUi2NRZcW

    • Remove the screws that secure the hard-drive bracket to the hard drive.

  7. NdnV4ZSQUOwtTDwJ

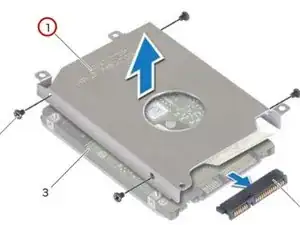

    • Lift the hard-drive bracket off the hard drive.

  8. JtLZMODcCaAPI3K1
    JtLZMODcCaAPI3K1
    bXugPHpppS6SJMZX

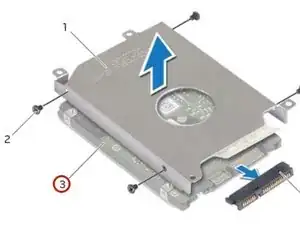

    • Place the NEW hard drive into the hard-drive bracket.

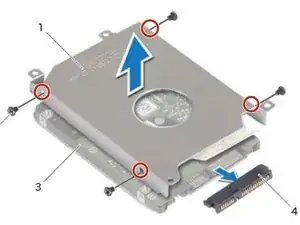

  9. fJqVD4fDDWc2pvVp

    • Align the screw holes on the hard-drive bracket with the screw holes on the hard drive.

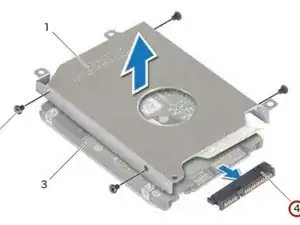

  10. AX5AvtXFsWM3XOkW

    • Replace the screws that secure the hard-drive bracket to the hard drive.

  11. PBsiyPfROKZLmqkJ

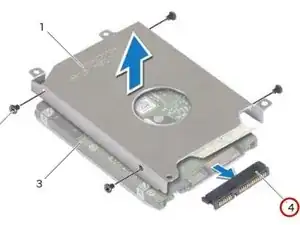

    • Connect the interposer to the hard-drive.

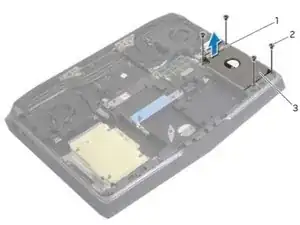

  12. uXGZdmGyncLMjBaF

    • Place the hard-drive assembly in the hard-drive bay.

  13. iVyXgaZjsXtugpSS

    • Align the screw holes on the hard-drive assembly with the screw holes on the computer base.

  14. c2pgbukpHtNGg2DL

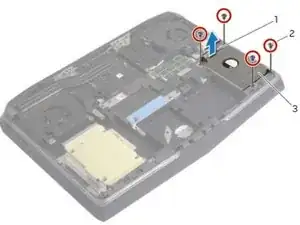

    • Replace the screws that secure the hard-drive assembly to the computer base.

Заключение

To reassemble your device, follow these instructions in reverse order.
