DeWalt DWD112 Chuck Replacement

Автор: Joe Echelmeier
  • Комментарии: 1
DeWalt DWD112 Chuck Replacement

Сложность

Moderate

Шаги

3

Необходимое время

Нет оценки

Введение

The chuck holds the drill bit in place—and if the chuck becomes broken, the drill serves no function. Use this guide to replace a damaged or broken chuck in the DeWalt DWD112.

Инструменты

  1. ik3kkjY1kMTHl4qU

    • Remove seven TR20 Torx Security screws from the side of the drill.

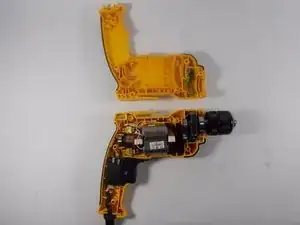

  2. biyFkgddruufgnf2

    • Remove the top cover to reveal the inside of the drill.

    • Set the top cover of the drill aside.

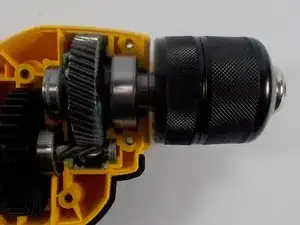

  3. uJ1KTFvR1WICADnH
    uJ1KTFvR1WICADnH

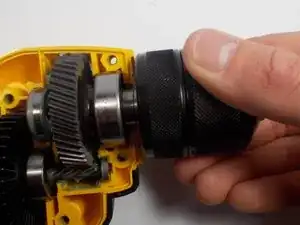

    ID1OEIhnurGCd4Lu

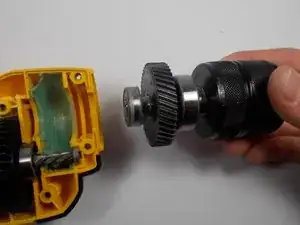

    4vdBQHfTveImTtYL

    • Take note of the gears meshed together.

    • Grab the metal chuck by the rotating spindle as if you are to tighten in a drill bit.

    • Remove the chuck assembly from the drill.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Joe Echelmeier

Участник c: 09/03/16

306 Репутация

Один комментарий

Or actually read the manual, and find you can use an allen wrench with no dissasembly at all.
