DeWalt DCS380 Blade Release lever Replacement

Автор: Jonathan Hicks
  • Комментарии: 1
DeWalt DCS380 Blade Release lever Replacement

Сложность

Easy

Шаги

4

Необходимое время

5 минут

Введение

This guide will show how to remove the blade release lever and replace it.

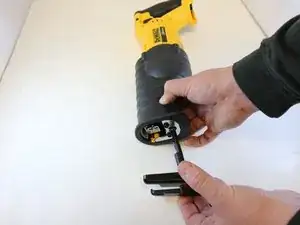

  1. RRLo1dhg2PMMGtIS

    • Remove the battery before disassembly.

    • Remove the shoe by pressing the yellow button on the left side of the hand grip.

    yellow button is lost

    J Hess -

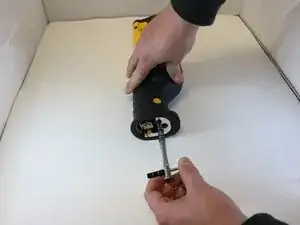

  2. CrgwddNJNa4HqtHH
    CrgwddNJNa4HqtHH

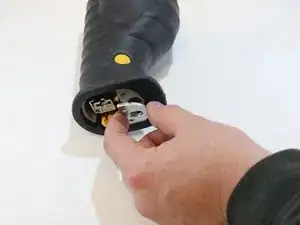

    1RCobgBs4GMSyq3M

    • Remove the two M8x18mm T20 bolts from the front plate.

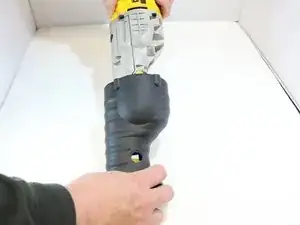

  3. FnRa4Fm6CqHC1Nxl

    • Pull the front of the grip while holding the saw body in place.

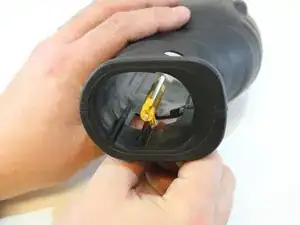

  4. GssMagKjfDGleAVm
    GssMagKjfDGleAVm

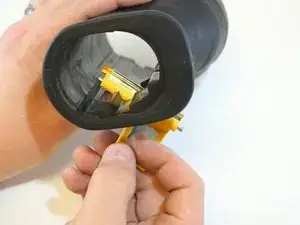

    PoB1Rcv6xgNfPWik

    • Fold the lever all the way back and push it out of the boot.

Заключение

To reassemble your device, follow these instructions in reverse order.
