Cuisinart TOA-60FR Light Switch Spring Replacement

Автор: Myra Chirchirillo
  • Комментарии: 0
Cuisinart TOA-60FR Light Switch Spring Replacement

Сложность

Moderate

Шаги

9

Необходимое время

30 минут

Введение

Are you having issues with your Cuisinart Oven's light not turning on? You may need to replace the light's spring. This guide will show you how to.

  1. FQiIK633HA1xH2J5

    • Using a 25-hexagon head screwdriver, unscrew these three 7.31 mm screws.

  2. FGHclsLOQYuMJpGX
    FGHclsLOQYuMJpGX
    tH4XieoeMHA5iIjk

    • Using a Phillips #1 screwdriver, remove all of these 7.31 mm screws.

    • Pull off the back panel.

  3. AKcjop32RlEsvEAl
    AKcjop32RlEsvEAl
    QZmMhdTAgfCNuAnc
    UDj5E2drGCNfRgbt

    • Flip the oven upside down.

    • Use a spudger to pull out the grey stoppers.

    • Use a Phillips #1 screwdriver to remove all three 11 mm screws.

  4. H4nftFS6vMtLCHj1
    H4nftFS6vMtLCHj1
    rWWfQKTRDMOSsWXm

    • Unscrew all of the 11.05 mm screws that connect the outer shell to the interior device.

  5. ItHgCPkSurRHJUcK
    ItHgCPkSurRHJUcK
    wfC2r4SAdcqOZmT2
    ofKmDrmHAjC5TQPR

    • Push down with a screw driver between the tabs, then pull up to release the tabs. Pull the top piece off.

  6. LOQVO5kWwkgWnbyx
    LOQVO5kWwkgWnbyx
    CK6s6Wge2oOyF1To

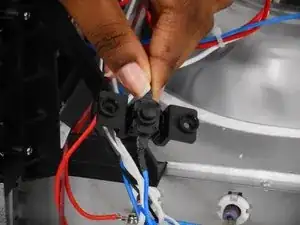

    • Unscrew these two screws to detach the light switch from the panel.

  7. 6u5skp2HccLLXdyd
    6u5skp2HccLLXdyd
    SGiupQ3JYQ4VdnrF

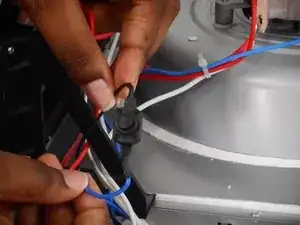

    • Pull the back piece of the switch off of the clicking piece.

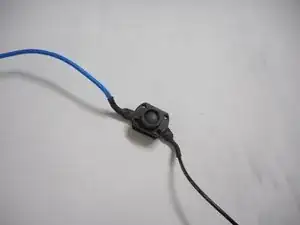

  8. Y2fZGfQNZwuX1XOO
    Y2fZGfQNZwuX1XOO
    X1OT6UhRueRlZNan

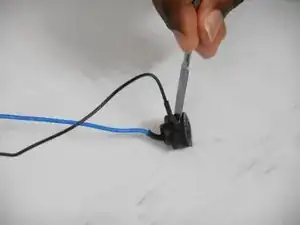

    • Use a metal spudger to pry open the clicking piece.

  9. UmcHqdT4dleYVRou

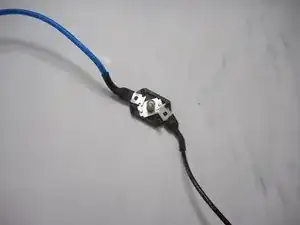

    • Remove the broken spring and replace it with the new one.

Заключение

To reassemble your device, follow these instructions in reverse order.
