CrystalView NB4-35788 Face Plate Replacement

Автор: Courtney Clark
  • Комментарии: 0
CrystalView NB4-35788 Face Plate Replacement

Сложность

Easy

Шаги

4

Необходимое время

45 минут

Введение

Replace the face plate to restore the visual quality of your device.

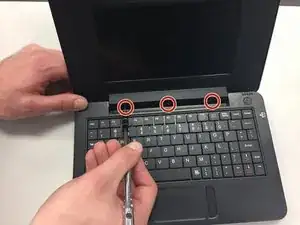

  1. GjZdVMZdyeWKWCZV

    • Remove each of the three screws located near the bottom of the screen using a Phillips #00 screwdriver.

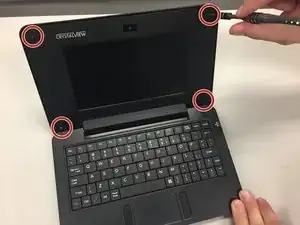

  2. LgtRWRZjE4vseMnZ

    • Remove each of the 4 screws located at the corners of the face plate.

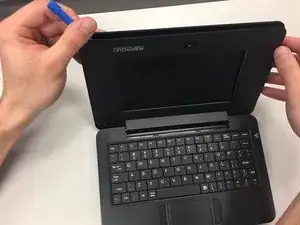

  3. ocXSF5nkTWcSfGlm

    • Carefully lift the entire perimeter of the face plate using a plastic spudger.

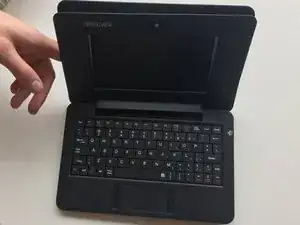

  4. JLR3BeB6U5ZZuExH

    • Pull back the edge of the face plate to remove it.

Заключение

To reassemble your device, follow these instructions in reverse order.
