Crosley CR704 Speaker Replacement

Сложность

Moderate

Шаги

4

Необходимое время

20 - 30 минут

Введение

When everything is working as it should, the speaker produces nearly the same vibrations that the microphone originally recorded and encoded on a tape, CD or LP record.

Инструменты

  1. kbCJQPORUmnsQEvi

    • Using your Philips head screwdriver, remove the 10 outer black screws from the back of the device.

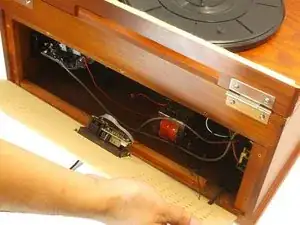

  2. cIQUUqHigewS22Du

    • Gently remove the back panel of the device being careful not to unplug any internal wires.

  3. Joh2OlOUU3XdkZLc

    • Using your Phillips head screwdriver, remove the 4 brass speaker screws.

    • Be careful to not remove the speaker housing screws, which surround the speaker screws.

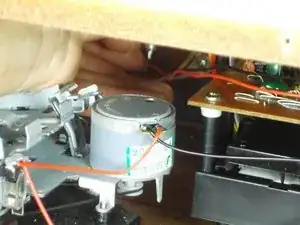

  4. Coo6YEFvhAGvZW54

    • Carefully pull the wires out of their connections from the back of the speaker.

    • Don't forget which wire goes with which connection!

Заключение

To reassemble, follow these instructions in reverse order. Then test by playing a tune. We suggest "Live at the Apollo" by James Brown.
