Conair Infiniti PRO Curling Iron Motherboard Replacement

Автор: Jonathon Bruer
  • Комментарии: 0
Conair Infiniti PRO Curling Iron Motherboard Replacement

Сложность

Moderate

Шаги

7

Необходимое время

20 - 30 минут

Введение

This guide will build off of the Housing and Power Cord Removal guides to remove and replace the motherboard.

  1. Xco6Bokn1KWQaPbY

    • Remove the Philips #1 28 mm.

    • Make sure device is unplugged and cool before attempting to replace parts.

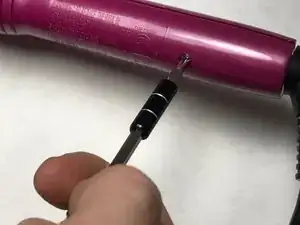

  2. WKbdPC4dnmySlvTr

    • Remove the Philips #1 22 mm screws.

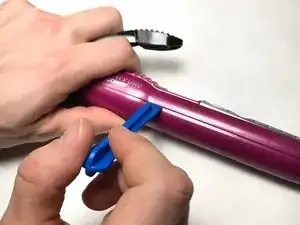

  3. xkUBTSub6UhloNtK
    xkUBTSub6UhloNtK

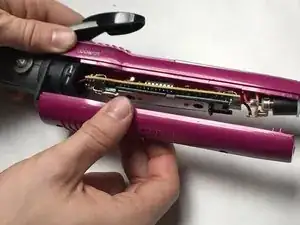

    xQ3DGVSON22FxIc5

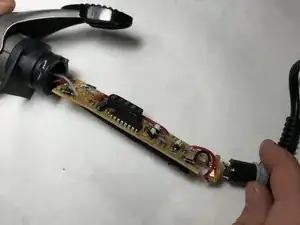

    3If1pjddPQPaYu5x

    • Pry off the housing using a plastic spudger.

  4. 5hMKh6SWXigSChxp

    • Pull power chord out.

  5. LeFidDNQsSZEifM6

    • Heat up your soldering gun and desolder the red wire from the motherboard as shown.

    • Note the location of wire attachment.

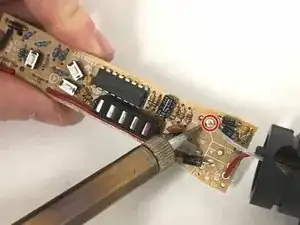

  6. sDprsVIRIfyNY61h

    • With your soldering gun, desolder the white wire from the motherboard as shown.

    • Note the location of wire attachment.

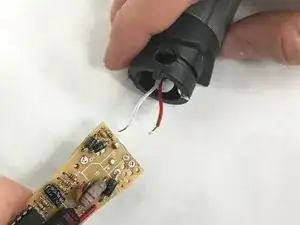

  7. 4GGwCPJJB4ElelNq

    • Once both wires are desoldered the motherboard can be removed.

Заключение

To reassemble your device, follow these instructions in reverse order, making sure to resolder the wires correctly into the replacement motherboard.
