Coby DVD209 Circuit Board for Buttons Replacement

Автор: Yufay Chow
  • Комментарии: 0
Coby DVD209 Circuit Board for Buttons Replacement

Сложность

Moderate

Шаги

5

Необходимое время

10 - 20 минут

Введение

  1. Mep5sCPurCGvLAxo
    Mep5sCPurCGvLAxo
    w2eMOT6pFgYbwcQ2
    mRXrooqlb3ZYNXQU

    • Press the eject button to view the laser inside.

    • Using the blue plastic tool and the tweezers, remove the ribbon cable.

  2. r2WOeFJJHJp1nxYA
    r2WOeFJJHJp1nxYA
    jYvFoQDNUFPwjyR5
    uIQIpUHMSni3d2kf

    • Remove the six 1cm screws on the bottom of the device with the Phillips #1 screwdriver.

    • Do not lift the top of the DVD player too quickly because there are wires attached on the inside.

    • Pry the top of the device open from the right side where the buttons are located.

  3. VhUZUXCvDsi1R3AF
    VhUZUXCvDsi1R3AF
    a6iYqnmpgALnVQLl
    SSXOcsroJ1LNpon4

    • When pulling the ribbon cables out, make sure not to pull by the wires, as this can cause damage to them.

    • Pinch the plastic adapter with two fingers to remove the wires circled in red from the circuit board.

  4. fGBxypkAa1M2eAnp
    fGBxypkAa1M2eAnp
    R6FcrJfvSCQO6UIm

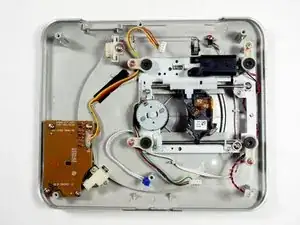

    • Take the top portion of the DVD player and orient the device as shown in the first picture.

    • Remove the four 0.2" screws circled in red.

  5. 5rGQJHSxv3Phs4ar
    5rGQJHSxv3Phs4ar
    rWHBMS6ybQOsEcpO
    bbcmcSBA3OkPGNPH

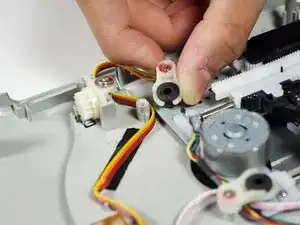

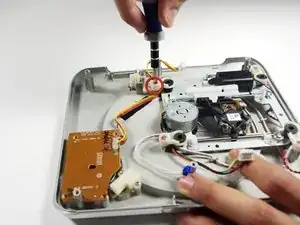

    • Losen the screw circled in red.

    • The screw will not come out of the plastic knob.

    • Turn the plastic knob 90 degrees to the right so that the cable comes out freely.

Заключение

To reassemble your device, follow these instructions in reverse order.
