Cobra MR HH350 FLT Motherboard Replacement

Автор: Jason Nguyen
  • Комментарии: 1
Cobra MR HH350 FLT Motherboard Replacement

Сложность

Moderate

Шаги

7

Необходимое время

5 минут

Введение

This guide will teach you how to remove and replace the motherboard on your Cobra MR HH350 FLT Radio.

  1. MEOZAAATSUfUf2WC

    • Remove the 11mm screw at the bottom of the radio with a #4 flathead screwdriver.

  2. OJxnOVrBriVvUekF

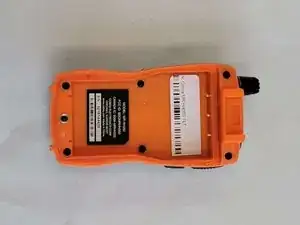

    • Remove the battery from the radio.

  3. XXOd1kafqKnUSYl2
    XXOd1kafqKnUSYl2
    KZmXKgBPKRwcoUes

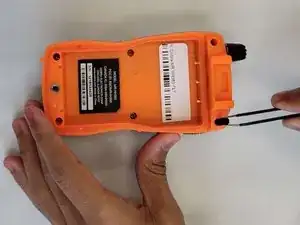

    • Remove the 6 rubber stoppers using tweezers to reveal screws.

  4. 6Cg3F1IsAMSwA3na

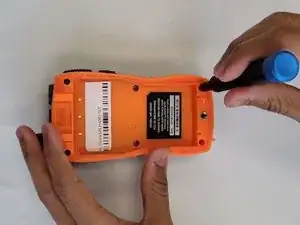

    • Remove the 6 10mm screws that were behind the rubber stoppers with a #0 Phillips screwdriver.

  5. ifPe1uhhZVyBdRGV

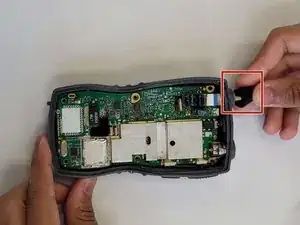

    • Remove the cover to expose the motherboard.

    • Pull off the power nob at the top of the radio.

  6. fbS42caFAGBfWd5X
    fbS42caFAGBfWd5X
    OCR3NagMCwZkNraZ

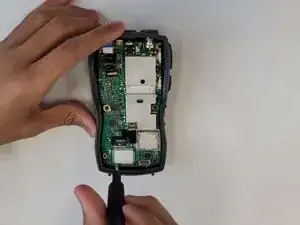

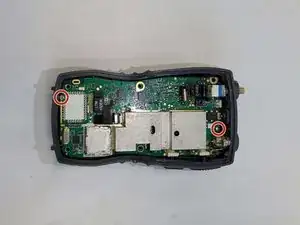

    • Remove the 2 6mm screws on the motherboard with a #0 Phillips screwdriver.

    Hi, what is in this two holes on the metal cases? Is it some king of tune? Or switch?

    Martin -

  7. XDKihZZHYV6VifeN

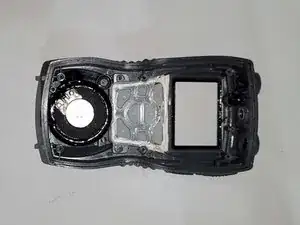

    • Remove the motherboard.

Заключение

To reassemble your device, follow these instructions in reverse order.
