Cobra MR HH350 FLT Button Replacement

Автор: Samuel Sternberg
  • Комментарии: 2
Cobra MR HH350 FLT Button Replacement

Сложность

Moderate

Шаги

15

Необходимое время

8 минут

Введение

This guide will teach you how to remove and replace the buttons on your Cobra MR HH350 FLT Radio.

  1. MEOZAAATSUfUf2WC

    • Remove the 11mm screw at the bottom of the radio with a #4 flathead screwdriver.

  2. OJxnOVrBriVvUekF

    • Remove the battery from the radio.

  3. XXOd1kafqKnUSYl2
    XXOd1kafqKnUSYl2
    KZmXKgBPKRwcoUes

    • Remove the 6 rubber stoppers using tweezers to reveal screws.

  4. 6Cg3F1IsAMSwA3na

    • Remove the 6 10mm screws that were behind the rubber stoppers with a #0 Phillips screwdriver.

  5. ifPe1uhhZVyBdRGV

    • Remove the cover to expose the motherboard.

    • Pull off the power nob at the top of the radio.

  6. fbS42caFAGBfWd5X
    fbS42caFAGBfWd5X
    OCR3NagMCwZkNraZ

    • Remove the 2 6mm screws on the motherboard with a #0 Phillips screwdriver.

    Hi, what is in this two holes on the metal cases? Is it some king of tune? Or switch?

    Martin -

  7. XDKihZZHYV6VifeN

    • Remove the motherboard.

  8. eDKh4BHr5AEr2nVt

    • Remove the screw at the bottom of the radio.

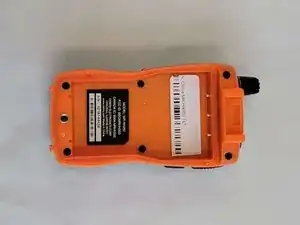

  9. GZSXlUfkZ5nQPKkW

    • Remove the battery from the radio.

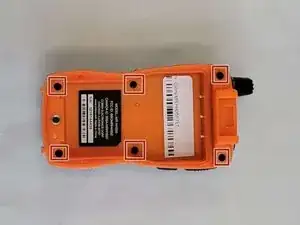

  10. nPgSi5PmYnmotTHG
    nPgSi5PmYnmotTHG

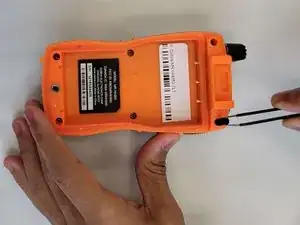

    uPviZNNubWS455oD

    • Remove the 6 rubber stoppers using tweezers to reveal screws.

  11. dwUQTENMF4KQkKjq

    • Remove the screws that were behind the rubber stoppers.

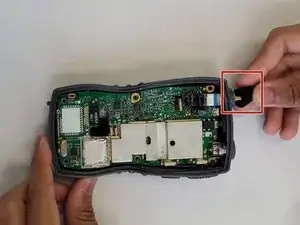

  12. XXgmDhwlc1D6nJMk

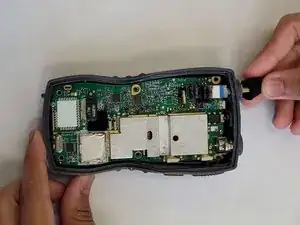

    XXgmDhwlc1D6nJMk
    5CHsM1rBLEZKOdGB

    • Remove the cover to expose the motherboard.

    • Pull off the power nob at the top of the radio.

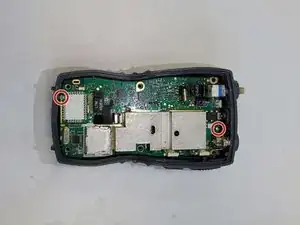

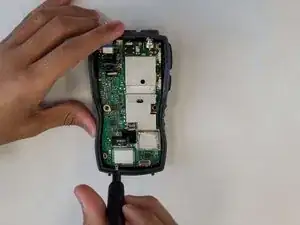

  13. vahKIolTntSSQqIN
    vahKIolTntSSQqIN
    PPlXFDAqYm3Iaguk

    • Remove the 2 screws on the motherboard.

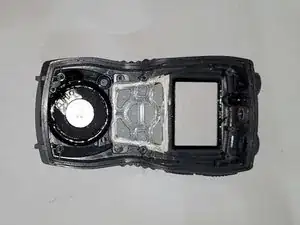

  14. gWCJOJkjXAIf2AI1

    • Remove the motherboard.

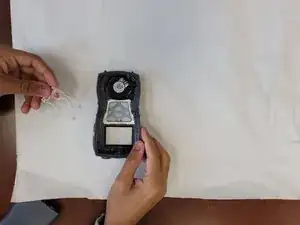

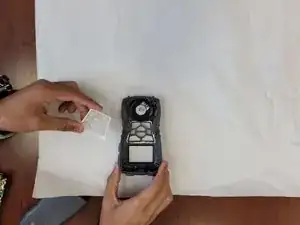

  15. mCOLQbEyQrbmPrYV
    mCOLQbEyQrbmPrYV
    BZaTWYJqJlgh1idi

    • Remove the plastic piece and the rubber button assembly.

Заключение

To reassemble your device, follow these instructions in reverse order.
