Classique 087CQA Heating Element Replacement

Автор: Brandon Jestis
  • Комментарии: 0
Classique 087CQA Heating Element Replacement

Сложность

Easy

Шаги

11

Необходимое время

10 - 15 минут

Введение

A defective heating element can prevent the hair dryer from heating blown air, so we are replacing the heating element. Replacing the heating element should ensure hot air when blown.

Инструменты

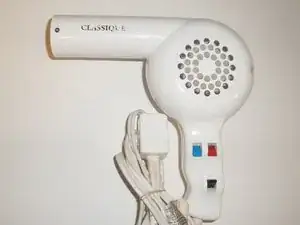

  1. CaAwN2p5mZe5xoP2

    • Begin with the side with switches

  2. gFgnapKibEMa441W
    gFgnapKibEMa441W
    q1tg4GSyGT1Sgabp

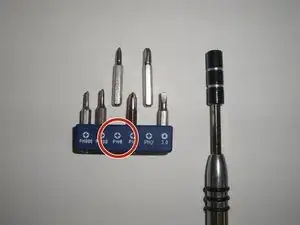

    • Remove the Phillips PH0 bit

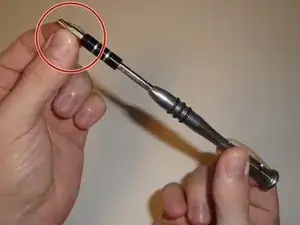

    • Insert the bit into the screwdriver

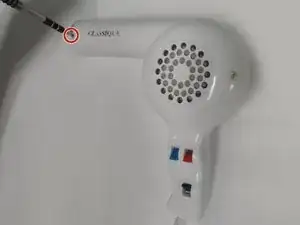

  3. ujOGEd3Q3On4vON3

    • Unscrew the shell screw (1) with the screw driver

    • 5mm Phillips flat-head screw

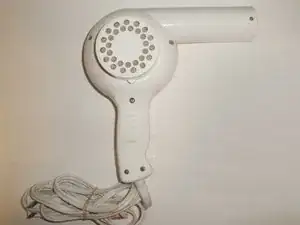

  4. JDDtBLTxJqU23NxS

    • Flip the hair dryer over to the side without switches

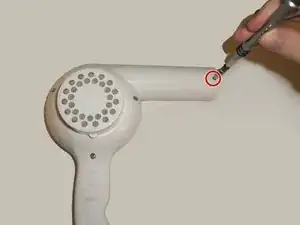

  5. LKB4e4iAruL3EEa4

    • Unscrew the shell screw (1) with the screwdriver

    • 5mm Phillips flat-head screw

  6. RJhYb2PVQALJbZrn
    RJhYb2PVQALJbZrn
    mgAIqnrqJFUT1P1Q

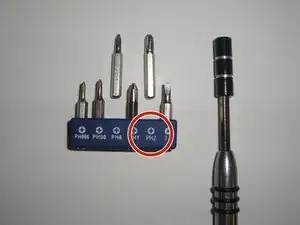

    • Remove the bit from the screwdriver and insert the Phillips PH2 bit

  7. CYgewrMPhqQ1SmZJ

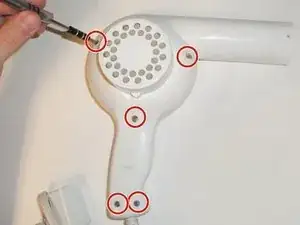

    • Unscrew the remaining shell screws (5) with the screwdriver

    • 15mm Phillips round-head screws

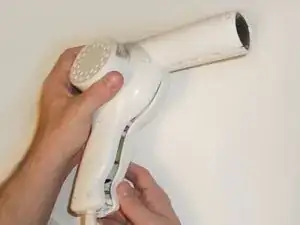

  8. yXkUih6WrgEEVTbf
    yXkUih6WrgEEVTbf

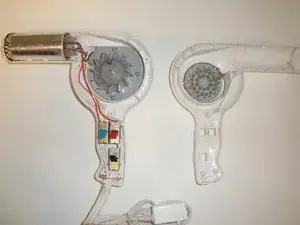

    dQqihXjnq4Yv6WpG

    • Gently pull the two sides apart

    • Separate each side

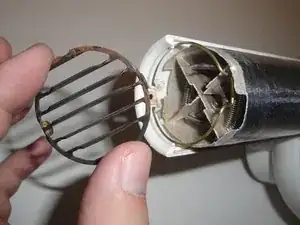

  9. P6uWQ2t5I5rWnlje

    • Remove front grill

  10. N2nCI2Hnbu2FRAXL
    N2nCI2Hnbu2FRAXL

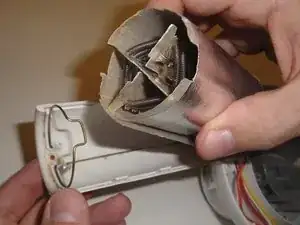

    ubWubITEBaH2OgGy

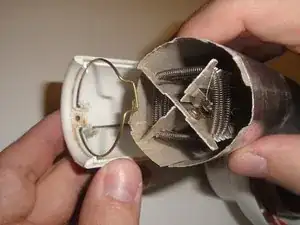

    • Pull up and remove the heating element assembly

  11. ElGLvFX2YhGU6SXF

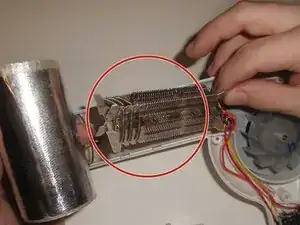

    • Remove the outer sleeve and replace the heating element

Заключение

To reassemble your device, follow these instructions in reverse order.
