Chumby One LCD Screen Replacement

Автор: Jordan Houchins
  • Комментарии: 0
Chumby One LCD Screen Replacement

Сложность

Moderate

Шаги

12

Необходимое время

20 минут

Введение

A guide to show how to replace LCD Screen in the Chumby One.

  1. pmigtkDvdNFYuuep

    • Remove 4 self-adhesive plastic dots covering the screw holes.

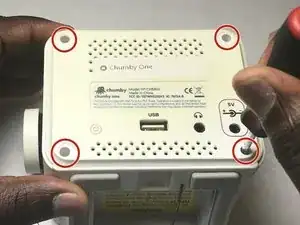

  2. 6SZFRLXAN4ocuMEZ

    • Remove the four 2mm screws with a Phillips screwdriver.

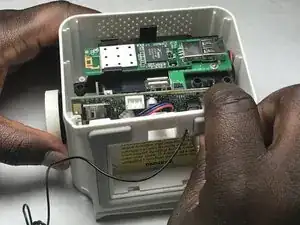

  3. cTsQJ6SGMsFHNbwD

    • Remove the back and bottom cover.

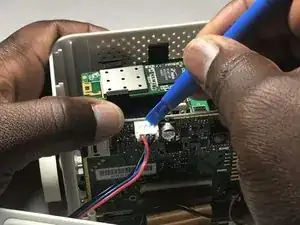

  4. qJDlK2kloASCdxWQ

    • Disconnect the battery connector from the motherboard with a plastic opening tool.

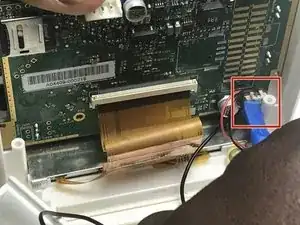

  5. mRjEADYhX6AcnExm

    • Disconnect the microphone connector from the motherboard with a plastic opening tool.

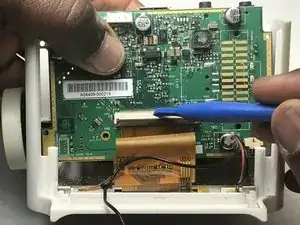

  6. 2YOjqIM4VxHQU5bn

    • Remove the display ribbon cable from its socket with a plastic opening tool.

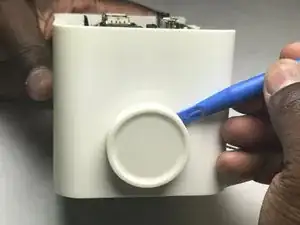

  7. iYQ1SE4JQKEVNIMR

    • Remove the volume knob from the side of the Chumby One with a plastic opening tool.

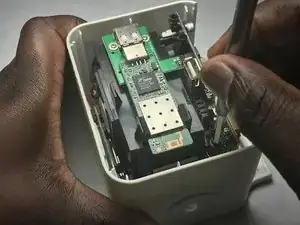

  8. k6RXjU6YMKC3YRod

    • Remove the four 6mm screws using a PH000 bit on the inner chassis.

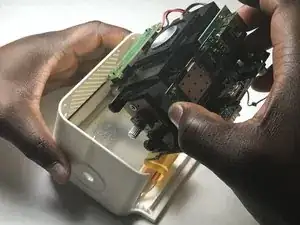

  9. Qosgy2QHBM2ujA2P

    • Remove the inner components from the outer shell.

  10. 1q5L4jBy1hR6UsGO

    • Remove the four 5.5mm screws with a Phillips PH000 screwdriver bit.

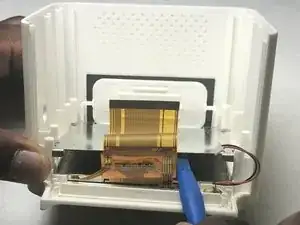

  11. PBOlXodMgF3jeqkd

    • Remove the metal shield from the front case using a plastic opening tool.

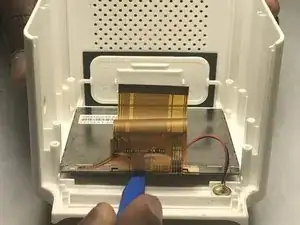

  12. bshNjYUuWc3aHsvM

    • Remove the LCD screen from the outer case using a plastic opening tool.

Заключение

To reassemble your device, follow these instructions in reverse order.
