Replacing the friction pads

Автор: Avrila
  • Комментарии: 0
Replacing the friction pads

Сложность

Easy

Шаги

5

Необходимое время

Нет оценки

Введение

Thrustmaster sells spare part through their online Eshop.

You can also contact Thrsutmaster technical support to get spare part if not available in your region.

  1. fwQFQiFVIVw1HucR
    fwQFQiFVIVw1HucR
    nRSjwHXhM6xekyFL
    imFHOgRAtKjOooOX

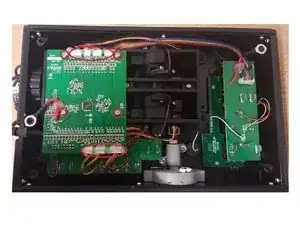

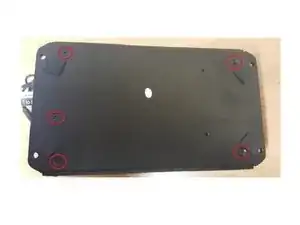

    • Unscrew these 5 screws

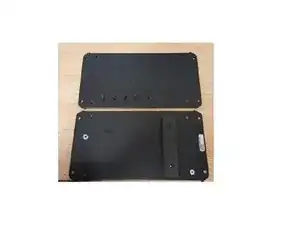

    • Remove the metal plate

  2. sx3fOd5oBU3ZHoMe
    sx3fOd5oBU3ZHoMe
    RG2AFONTYnGlOJGm
    1J2hhoXirmPYAdRy

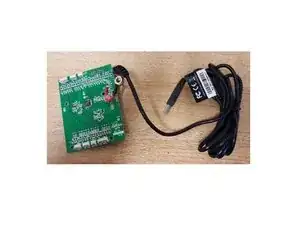

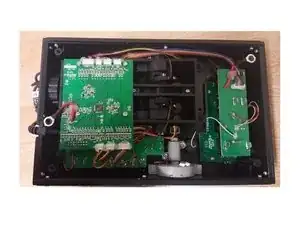

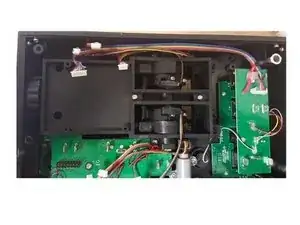

    • Unscrew the 4 screws, disconnect all the connectors and take off the PCB

    • Remove the 4 screws, disconnect all wires and remove the PCB.

  3. xAvsLRy3qNW6hhhk
    xAvsLRy3qNW6hhhk
    M2PD4FeeqIpn1vHe
    FMDFbrAhjLfEYVkP

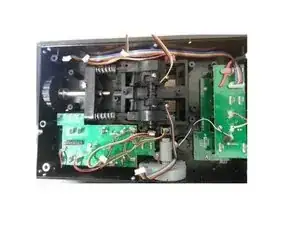

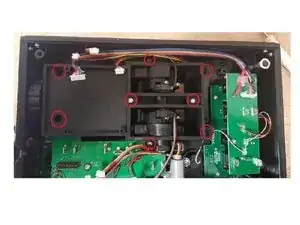

    • Remove 8 screws highlighted on the picture.

  4. kUYd1sCAV5lZDwFF
    kUYd1sCAV5lZDwFF
    6MD25yMfNGMELA46
    TddWZnbEZMSw4cVI

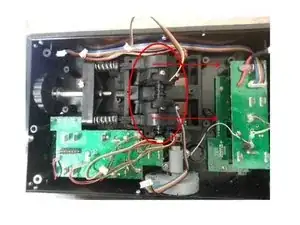

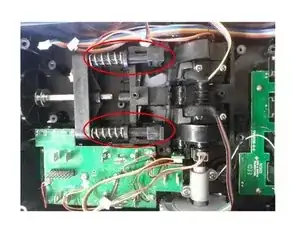

    • Push the lever arms to gain access to the friction pads.

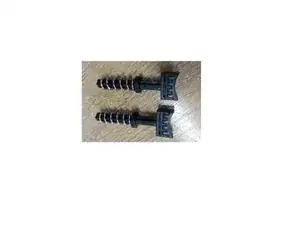

    • You can now remove the Friction pads

    • You can now change your friction pads

Заключение

Reassemble the product by following this procedure in reverse order.
