Casio G-Shock G302 Battery Replacement

Автор: Filmon Teamrat
  • Комментарии: 0
Casio G-Shock G302 Battery Replacement

Сложность

Easy

Шаги

5

Необходимое время

10 минут

Введение

Use this guide to replace the battery on the Casio G-Shock G302.

  1. nNBV5ZcqcDhOi2kB

    • Remove the four Phillips #00 screws from the back of the watch.

  2. DS3DBrWXednufwYK

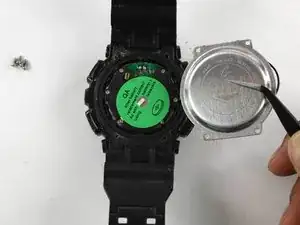

    • Use a pair of tweezer to remove the metal cover by lifting it.

    • Be careful not tot lose the rubber gasket underneath.

  3. QYMhcgV3ZDVKeHM1

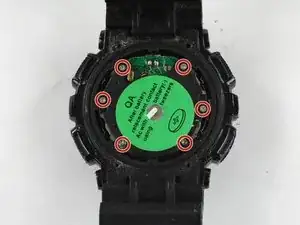

    • Remove the six Phillips #00 screws from the inside of the watch.

  4. o1CPr3arNighHcvR

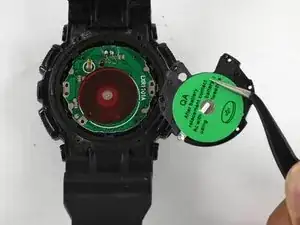

    • Use a pair of tweezers to remove the protective casing with the battery attached to it.

  5. ynBM1jKxIjlvIZmy

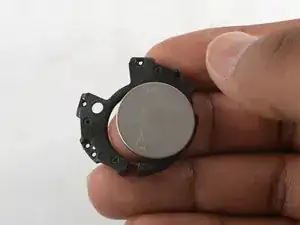

    • Use your finger to push the CR2025 Lithium battery out of its protective casing.

Заключение

To reassemble your device, follow these instructions in reverse order.
