Canon PowerShot SX160 IS Clock Battery Replacement

Автор: Jamie Secretan
  • Комментарии: 23
Canon PowerShot SX160 IS Clock Battery Replacement

Сложность

Moderate

Шаги

4

Необходимое время

15 - 30 минут

Введение

This guide walks you through how to replace the internal CR1220 battery on your Canon PowerShot SX160 IS by removing the battery tray on your camera.

Инструменты

Запчасти

  1. pbZNWBiDuh1ygb5X

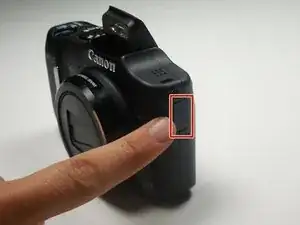

    • Locate the internal battery tray on the side of your camera.

    Thank you so much for your help. I was able to fix it without any problems.

    Barbara -

    Your instructions to replace the battery was most helpful. Thank you.

    Barbara -

  2. M1LSZoMxfMUGbb6r

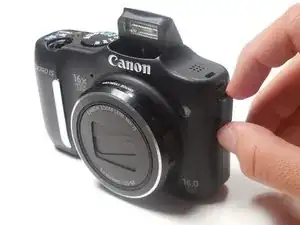

    • Use your finger or a spudger to gently pry the battery tray out of the camera.

  3. LDDeRyDXcJyGXXTo

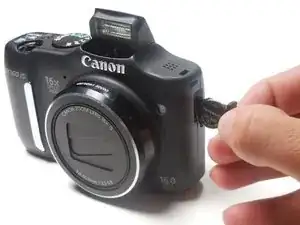

    • Fully remove the battery tray from the camera.

  4. 1WcXtKBTNS3hFwtc

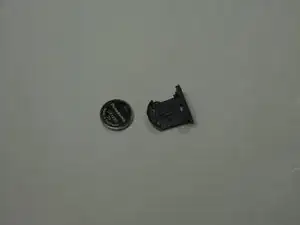

    • Remove battery from tray and replace.

    These photos show the battery upside-down. The positive goes down, towards the plastic tray, while the negative goes up, towards the open top of the tray.

    tomcatanzaro -

    Thanks, Tom! I first put the battery in the way the photo displayed, and then set the date. When I turned the camera off, then on again, I got the message the date and time needed to be set. Changing to your way solved my problem! Thanks so much!!

    William Burke -

    Where can I buy batteries like these? Thanks

    Nicole -

    Need a new battery tray…. Is there a way to get this part.

    Judy Bogner -

Заключение

Congratulations, you have successfully replaced the internal battery. To reassemble your device, follow these instructions in reverse order.

Автор

Jamie Secretan

Участник c: 11/03/15

1990 Репутация

17 комментариев

Clear and simple. Thanks!

Jim -

I had no idea! Thanks!

natorbett -

Its not necessary to unscrew the tray.

Afzal Pawaskar -

Thank you, Jamie!

Casey Cain -

Gee I thought I am so glad I checked the Internet first...(before I threw it in the trash) that is how frustrating this was. Thank you everyone, I do love this camera

Barbara Rivers -

Thank you. Very useful.

Leonid Mugurel Verbschi -

thank you, i couldn't find it in the manual

ramar -

Best camera I've ever had yet. All I have to do now is find a supplier for the battery.

carverdoone -

My sentiments exactly like Barb Rivers. It's great to have someone like you guys do such a pro. job.

Many thanks and keep up the good work.

Richard Lange -

Where do I go to buy this battery?

Louise Gladkowski -

Love the canon camera I have this one, but it drains batteries when taking pictures? I have to bring a 8 pack of batteries it’s crazy!

Bonnie Bennett -

I have a canon camera love it but it drains batteries have to bring a 8 pack something not right? Please let me know if it’s fixable or get a different one? Thanks

Bonnie Bennett -

Tried for 2 days to get in touch with Canon with no response, Jaime solved it in seconds !

Drew -

The pictures are wrong, the (+) and (-) are switched. Read the battery holder, that’s ok. Eze

adreze -

i put new batterry to take shot still it showing low battery what will be the problem

montu bhagat -

hi. direction easy, but still have problem

Suzanne LaCroix -

got the battery out ok. now where the !&&* do i get a new one? no one carries it around my neck of the woods….

suesan629 -
