Canon PowerShot SD1300 IS Shutter Button Replacement

Автор: Clayton
  • Комментарии: 0
Canon PowerShot SD1300 IS Shutter Button Replacement

Сложность

Moderate

Шаги

4

Необходимое время

5 - 20 минут

Введение

This guide will show you how to properly replace a faulty shutter button.

  1. jcI64ey6fy5lcxg1
    jcI64ey6fy5lcxg1
    SUQeTbeARJ5fxRVD
    pQopMJUoqABPUWjU

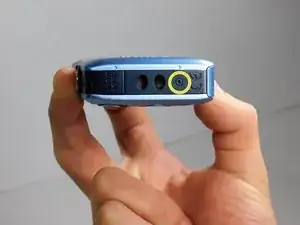

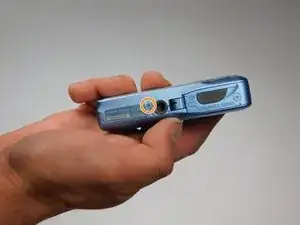

    • Remove the two 2mm J00 screws on the right exterior.

    • Remove a single 4 mm J00 on the bottom exterior.

    • Remove a single 3mm J00 on the left exterior.

  2. bErnSQnTKxWyhhjA

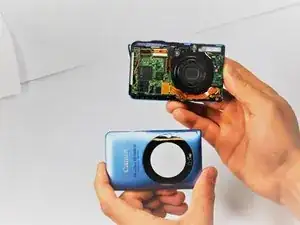

    • Once the front shell of the camera is removed the back shell should slide off just the same.

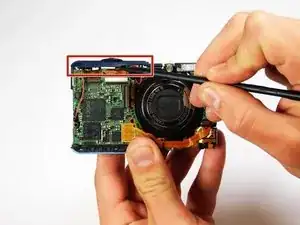

  3. HuRuVANJk5BrXURR

  4. 2vQn3BxJAbV4sQja

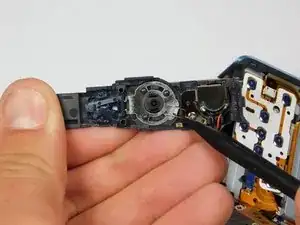

    • Insert Heavy-Duty Spudger under shutter button to release shutter button.

Заключение

To reassemble your device, follow these instructions in reverse order.
