Canon EOS Rebel XS 35mm Bottom Cover and More Replacement

Remove 6 screws using a PH000 Screwdriver.

Remove 1 (7mm) screw

Remove 5 (4mm) screws

With your fingers, push on the bottom cover with a horizontal force until it clicks and separates.

With tweezers - although you can also use your fingers - you may remove these 5 gears and place them somewhere else for the time being. They fall out easily while you're working, so this will help you stay organized.

Remove the 5mm silver Phillips #000 screw.

Remove three 4mm Phillips #000 screws.

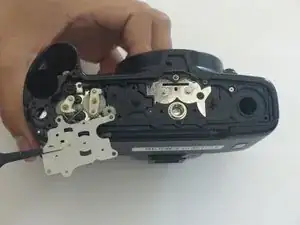

Remove the silver plate with tweezers or fingers.

Remove the plastic black part.

Remove the black gear with tweezers or fingers.

Remove the gear with tweezers or fingers.

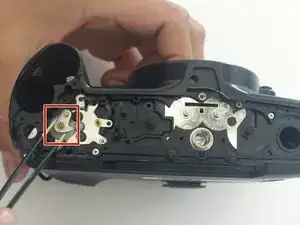

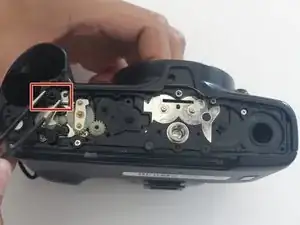

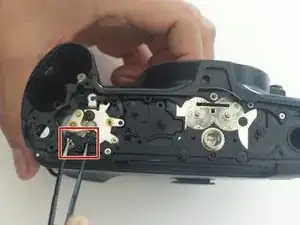

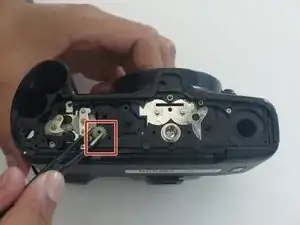

Remove the part indicated in the picture with tweezers or fingers.

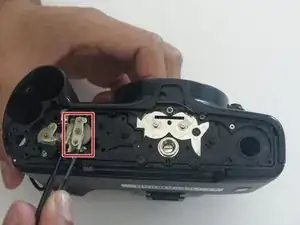

Remove the part indicated in the picture with tweezers or fingers.

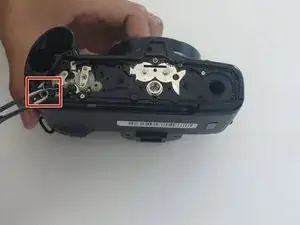

Remove the part indicated in the picture with tweezers or fingers.

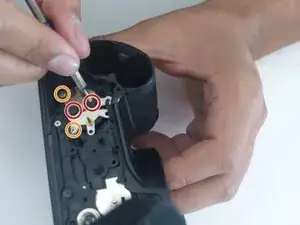

Remove two 3mm Phillips #000 screws.

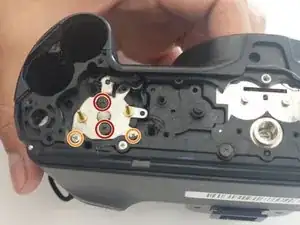

Remove two silver 3.5mm Phillips #000 screws.

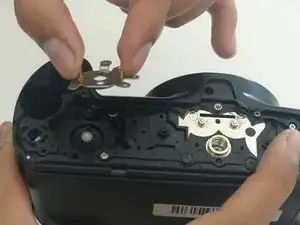

Remove the second silver plate using tweezers or fingers.
