Canon EOS Rebel T3i Screen Replacement

Автор: Natalie Crock

Комментарии: 4

Сложность

Moderate

Шаги

Необходимое время

20 минут

Введение

Use this guide to replace the LCD screen on your Canon EOS Rebel T3i.

Инструменты

Шаг 1

Locate the battery compartment on the bottom of the camera.

Шаг 2

Hook your finger onto the compartment door latch.
Open the battery compartment door.

Шаг 3

Remove the battery from the compartment.

Шаг 4

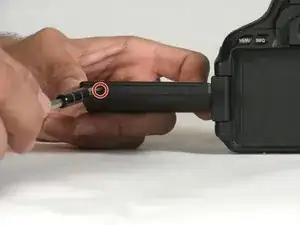

Remove the two 3 mm JIS #000 screws. The screws are on opposite sides of the screen.

In addition to the 2 screws you pointed out, there are an additional 2 screws on the swivel side where it attaches to the camera. Without those 2 removed you cannot take the back off.

gtinmia - 15/09/16

Шаг 6

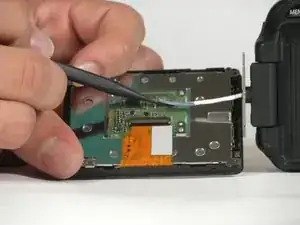

Unplug the blue cable from the back of the LCD.

Hi, I have a Canon T3i and this blue cable is broken. Where can I find this cable to buy?

Does it have any reference number?

JOAO L C CARVALHO - 07/06/16

Шаг 7

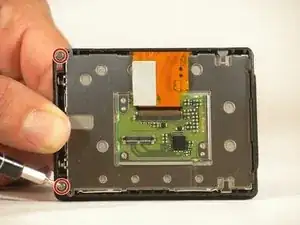

Remove the two 3 mm JIS #000 screws.

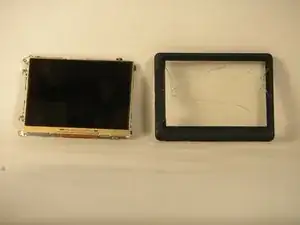

Separate the LCD from the plastic housing.

There are an additional 2 screws that need to be removed from the swivel part which keeps the LCD in place. Those 2 screws are only visible after you remove the backing. In total, there are 8 screws to remove to be able to take the LCD out. 4 to get the backing off, 4 to get the LCD detached from the housing.

gtinmia - 15/09/16

Thank you I will try to put together as instructed...

Terry -
