Brentwood TS-292B Toasting Lever Replacement

Автор: Elly Ayala
  • Комментарии: 0
Brentwood TS-292B Toasting Lever Replacement

Сложность

Moderate

Шаги

5

Необходимое время

20 минут

Введение

If you are experiencing issues with the lever on your Brentwood TS-292B not functioning properly it might be time to replace it. This guide will lay out an easy to follow step by step process to demonstrate how to properly remove and replace the existing lever of your toaster.

Before beginning this process, the toaster must be unplugged from the outlet.

  1. gPaCSZnHxsdXMGWd
    gPaCSZnHxsdXMGWd
    1FMdjOJC1XhhPbRD

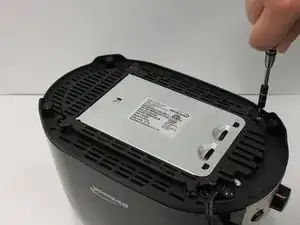

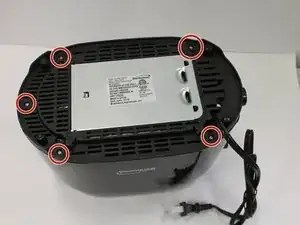

    • Use a Phillips #2 screwdriver to remove all of the 6mm screws from the bottom of the toaster.

  2. jchTYFklxAtW2wEb
    jchTYFklxAtW2wEb
    WmQmjYGlGyVljwJM
    HAS2j5jEOywOJnKu

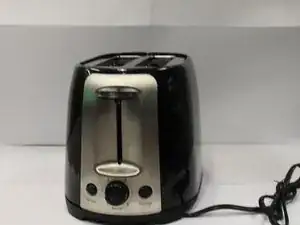

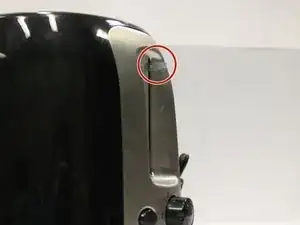

    • Push in the small tab located to the left, and pull the lever tab away from the toaster with force.

    • Remove the toaster cover carefully.

  3. YaFVrYsYJolr6CsF

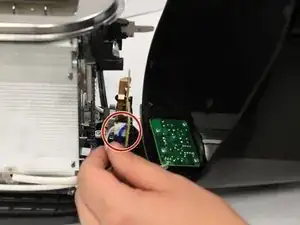

    • Detach the bundled cable connector by carefully pulling it away from the circuit board.

  4. 6sj22L3GCDrrOl2b
    6sj22L3GCDrrOl2b
    RlaFCfjGYxkPSpLJ

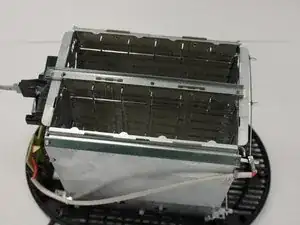

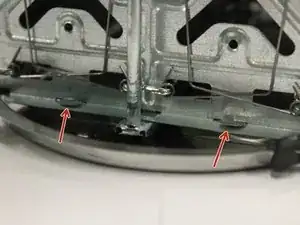

    • Push the tabs in and lift the top of the toaster off.

  5. 2Gc4sCWqDJIjXsAW
    2Gc4sCWqDJIjXsAW
    DsORi5DHZQJiUklX
    teWoEgnSgDITGYHA

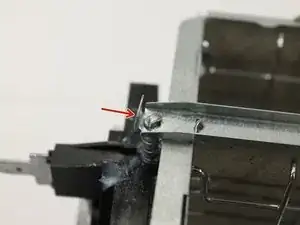

    • Lift up the tab that is located at the front of the toasting lever.

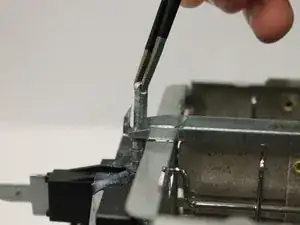

    • Use tweezers to carefully lift up the metal bar.

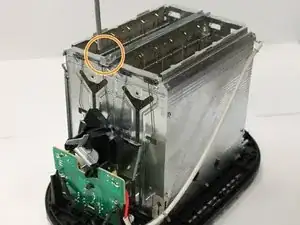

    • Remove the springs and replace them with new ones.

Заключение

To reassemble your device, follow these instructions in reverse order.
