Blu Studio 5.5 Micro USB Port Replacement

Flip over your Studio 5.5 so the back is facing you.

Use either the spudger or your fingernail to pull up on the slot in the lower left corner and remove the back cover.

Place your finger in the small groove beneath the battery.

Push the battery toward the top of the phone and lift it out.

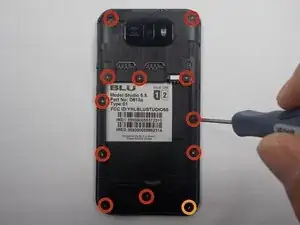

Begin by removing the 12 screws along the back of the device.

1 of these screws will be underneath a white sticker. Just press the screwdriver through it and remove it normally.

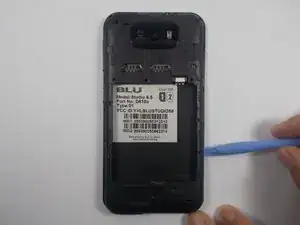

Using your plastic opening tool, begin carefully prying the plastic shell from the phone.

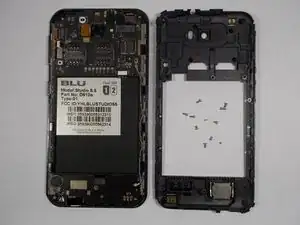

Make your way around the edge slowly and lift the shell off when you have made a full circuit.

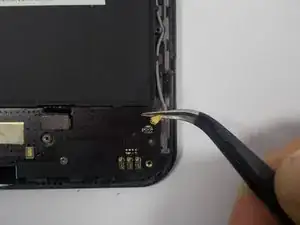

Using your tweezers, locate the small gold-colored plug in the bottom left corner and pull it straight out.

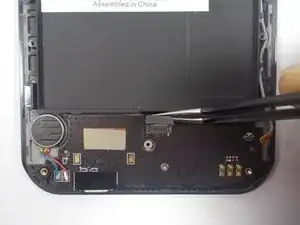

Use the tweezers again to pull out a small black plug in the bottom middle.

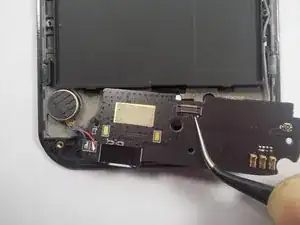

Grip the entire circuit board firmly with your tweezers and pull it towards the bottom of the phone and out.

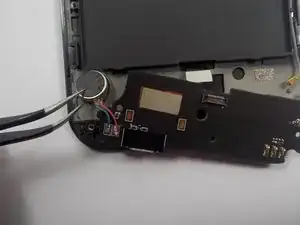

Pry the speaker from the phone with your tweezers.
