So you broke the screen of your Blackberry Bold 9000? Heres how to replace it!

Инструменты

Запчасти

  1. JWNbVLCXFV2NLXxn
    • Remove those six screws with a T5 Screwdriver

  2. XXZtdgMuIE2yVETr
    • Lift up the backplate

  3. VsTYYMJ4uHHR3XVS

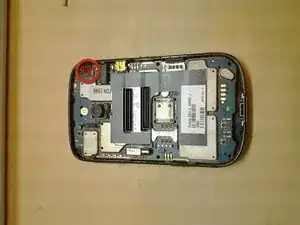

    • Lift the motherboard

    • Disconnect the ribbon for the display and the speaker.

  4. ThXf2CV6XSErMLrc

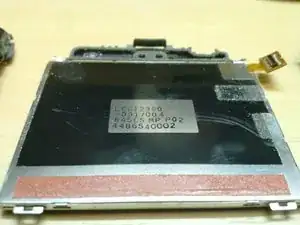

    • Then simply lift up the display. On the back of it it would say either 001/004, 002/004, 003/004 or 004/004. Make sure you buy the right replacement model or else it will not work.

Заключение

To reassemble your device, follow these instructions in reverse order.
