Black and Decker Toast R Oven Knobs Replacement

Автор: Jonathan
  • Комментарии: 1
Black and Decker Toast R Oven Knobs Replacement

Сложность

Moderate

Шаги

9

Необходимое время

Нет оценки

Введение

Before replacing knobs you will have to disassemble oven to take off the knobs and faceplate.

Инструменты

  1. nJT2tGhTB2TYG4aG

    • Make sure that the toaster is unplugged before you begin.

    • Turn the toaster upside down and remove the two Phillips #4 1 cm screws attached to the side panels.

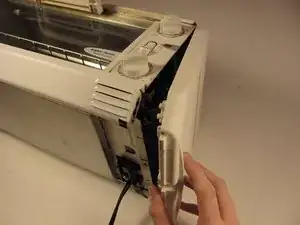

  2. BfGfOI4qey2WKjqZ
    BfGfOI4qey2WKjqZ
    vhvDjwRpNtdDommj

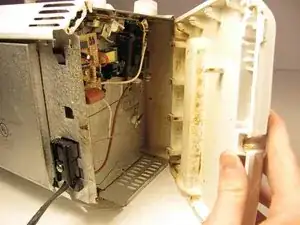

    • Pull down and out to remove side panels from the unit

    • Repeat for the other side.

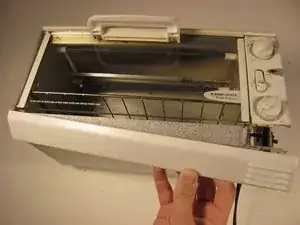

  3. 5nuqNwCQHEm1FYYF

    • Remove the bottom vent.

    • This should come off fairly easy.

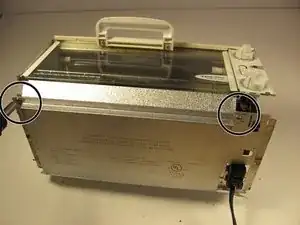

  4. ZIXegnRIkEGrrBIq

    • Remove the two Phillips #4 1 cm screws that connect the bottom panel to the unit.

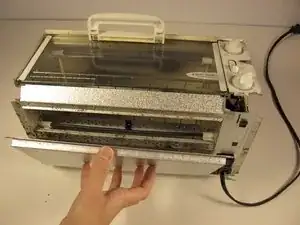

  5. iGgWcUmBXwRETHAm

    • Remove the crumb tray (bottom metal panel) from the toaster unit.

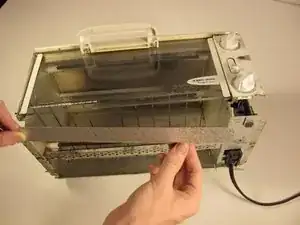

  6. OZak6TVI5YeTldty

    • Remove the aluminum strip on the bottom of the unit.

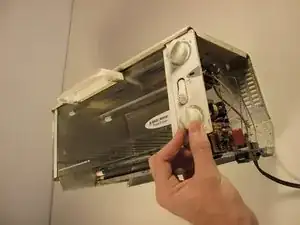

  7. QoNbSLFVSXZyEqTC

    • Remove knobs by pulling up on them.

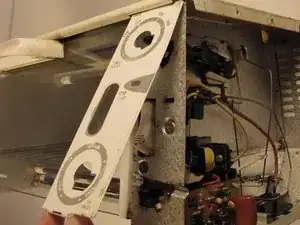

  8. wHOiXjmecLyoolA1

    • Unhook the bottom of the display panel from the toaster unit.

    • It will be a little tough to pry off, but don't be afraid to be forceful.

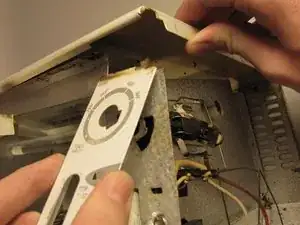

  9. qHVIxDLAKcZXtBWh

    • Begin to detach the back panel from the toaster unit and unhook the rest of the display panel.

    • This will also be a little tough to get off, but don't be afraid to be forceful.

Заключение

To reassemble your toaster, follow these directions in reverse.
