Введение

The battery can go bad on many devices. This guide includes removing the back plate and then detaching the battery from the rest of the watch.

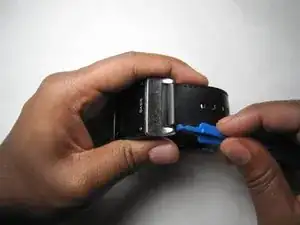

  1. PaYMYrncXTwxbFe2
    • Wedge a plastic opening tool between band contacts.

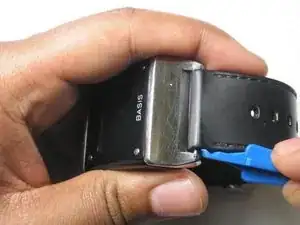

  2. DQLAL1Q6aATreEEU
    • Push in plastic opening tool until the components click and pop out of the holder.

    • Repeat steps for other band.

  3. FLC4qkshsf3AILmR
    • Remove four 4mm screws using a PH000 screwdriver.

    • Remove back plate.

  4. YMQvugUmRlbPoEe6
    • Use tweezers to remove elastomeric, or zebra, connector.

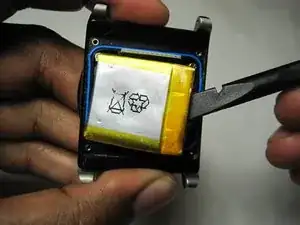

  5. fDxKd2FpGNrpqsJG
    fDxKd2FpGNrpqsJG

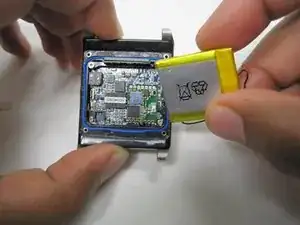

    6YJDCdnko3Vs2WtE
    • Use the flat end of the spudger to carefully lift the battery until adhesive seal is broken.

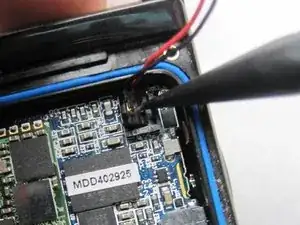

  6. ZC5LxmHuGpvekEfE
    • Use the pointy edge of the spudger tool to detach battery leads from the circuit board.

Заключение

To reassemble your device, follow these instructions in reverse order.
