Backbone One Left Mainboard Replacement

Автор: Adriana Zwink
  • Комментарии: 3
Backbone One Left Mainboard Replacement

Сложность

Moderate

Шаги

11

Необходимое время

10 - 20 минут

Введение

Use this guide to replace the mainboard on the left controller handle in your Backbone one.

  1. 4JE4ETKPr1LcwCyV

    • Use a Phillips screwdriver to remove the four 5.9 mm-long screws.

  2. CWOnOyBI356VMQfO
    CWOnOyBI356VMQfO
    PH6ItmlcJfFU3aZA
    1A2wDsDEKBSeSCar

    • Lift up the upper part of the controller.

    • Swing over the upper cover and place it on the controller case.

    • Take care that the interconnecting cable has no tension.

  3. ypdIgvP5n4jSR24b
    ypdIgvP5n4jSR24b
    CpNS26qfssYBdYV1
    NT2bbP6cFgEWStDE

    • Use a pair of tweezers to remove the yellow protective tape which is placed over the interconnect cable connector.

  4. jDGUEa4KRLKUY1Wk
    jDGUEa4KRLKUY1Wk
    uUrkYWrNDqSW5F4A

    • Use the tip of an opening pick to open the gray flap of the ZIF connector by pushing it upwards.

  5. AI23YGYmLZFREsdJ
    AI23YGYmLZFREsdJ
    uWT6K2Bx5TBavLcv

    • Use your fingers to disconnect the interconnect cable from its connector.

  6. wcW2bXUPXgUJDlsk
    wcW2bXUPXgUJDlsk
    RMxJwSVuRdmmcHPn

    • Remove the upper half of the left controller assembly.

  7. UhgifRBXENEV6BwL
    UhgifRBXENEV6BwL
    WdFVXhBTdu5jv2uf

    • Use a Phillips screwdriver to remove the 5.9 mm-long screw which is securing the trigger.

    • The screw is difficult to reach. Insert the screwdriver at an angle of 45 degrees.

  8. ajYnZPGRSPGiVWBe
    ajYnZPGRSPGiVWBe
    OVFhHE6lWVDS2GQG

    • Remove the left trigger.

  9. BOksY6NPnXPBLcUV
    BOksY6NPnXPBLcUV
    wbIlCvknppmaYAk5

    • Use your fingers to remove the left bumper.

    But is it possible to repair an unresponsive L bumper and replace it with new one or fix the wires?

    Adrian .L -

  10. tWMLdum2reECFUWf

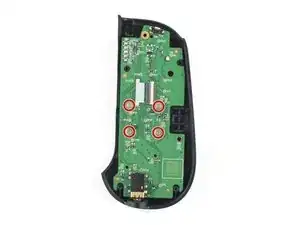

    • Use a Phillips screwdriver to remove the four 3.9 mm-long screws.

    This misses two additional screws that attach the joystick to the cover. Since the joystick is attached the mainboard the screws have be included to remove the mainboard.. One of the screws is at the very top just to the left of the mainboard the other one is visible through the hole next to the TP23 marking on the mainboard.

    Shannon Barrett -

  11. c64DJciLvQkfPKVC
    c64DJciLvQkfPKVC
    4rbJPNDhk6wmZfVA

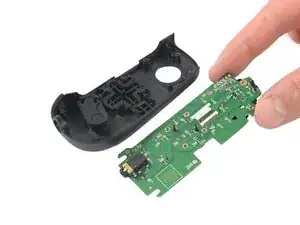

    • Remove the mainboard.

Заключение

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Ask our Answers community for help.

Автор

Adriana Zwink

Участник c: 18/12/19

58011 Репутация

Один комментарий

In my unit, there were two more screws at step (10), in the upper part of the controller, near the trigger. They may have changed the number of screws used in manufacturing at some point.

Mario -
