Asus Tablet MeMo Pad 7 ME7000C Speaker Replacement

Автор: Katie
  • Комментарии: 0
Asus Tablet MeMo Pad 7 ME7000C Speaker Replacement

Сложность

Moderate

Шаги

8

Необходимое время

10 - 15 минут

Введение

This guide will help you to replace a broken speaker in your Asus Tablet MeMo Pad 7 ME7000C.

  1. kWqN1WQMhHidJ5Gy
    kWqN1WQMhHidJ5Gy
    AYqMCnpKMvvY3mXR

    • Flip over the tablet so the back cover is facing you. Hold the second button on the left below the volume buttons down until it powers off.

  2. WCgtLTsane6pZRYK
    WCgtLTsane6pZRYK
    OZAeQC1qsq3fnF3n
    SMRYnclQREGULacv

    • Beginning in the upper corner of the tablet, use the blue plastic opening tool and run it along the seam. Do this slowly so you don't cause damage to the device.

    • If you are having trouble using the blue plastic opening tools, try using the black spudger instead.

  3. fMbsKhkXE4oBU1oE
    fMbsKhkXE4oBU1oE
    OGHuZWEEaIyWpoEV

    • Pull the rear panel and the display screen away from each other.

  4. BXOrXjU2cxATWgLh
    BXOrXjU2cxATWgLh
    J63K6D3sJmh53L5I
    y6v4ZlF5gO2yoRs3

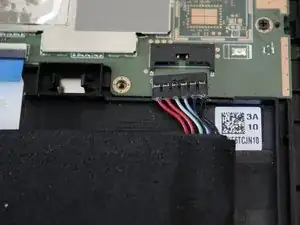

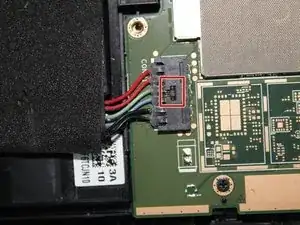

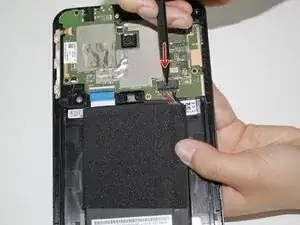

    • Using the spudger, gently press on the black button on the plug port to release the battery from the plug.

  5. RUxJCwSIWOlCQOHM
    RUxJCwSIWOlCQOHM
    5sNLMTwauvuAsV4p

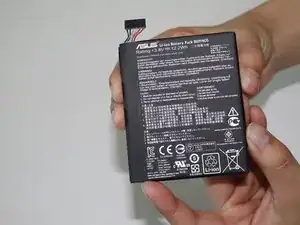

    • Remove the battery from the device.

  6. 3MMGNqY1uAZCmPKT
    3MMGNqY1uAZCmPKT
    RiqBZE6mHmOiHHvY

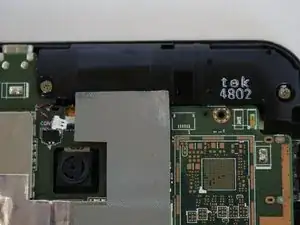

    • Using the tweezers, disconnect the black clip.

  7. sBIvYOv4B5GZgnuq
    sBIvYOv4B5GZgnuq
    fMx4lRTdJZSUE1VP
    2AIPyjlF4kBYDIoY

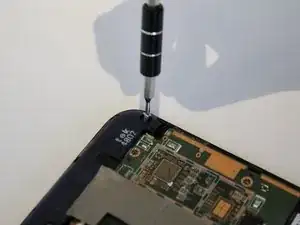

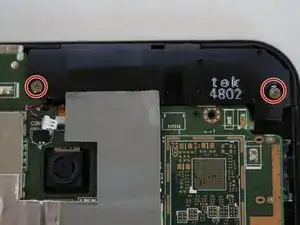

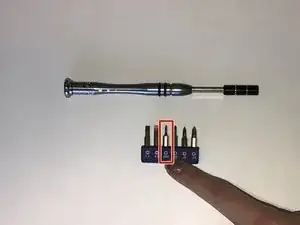

    • Use the Phillips #000 Screwdriver to unscrew the 3mm Phillips head screws on the right and left corners of the speaker.

    • Use the magnetic pad to keep track of your screws while working.

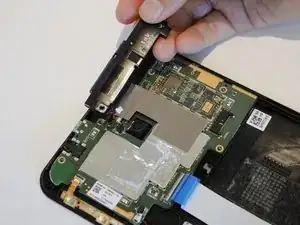

  8. FMBK5XXlHFORHj2W

    • Remove the speaker from the device.

Заключение

To reassemble your device, follow these instructions in reverse order.
