Asus ROG STRIX GL502V Battery Replacement

Автор: Sergei
  • Комментарии: 2
Asus ROG STRIX GL502V Battery Replacement

Сложность

Easy

Шаги

6

Необходимое время

15 минут

Введение

Replace battery in Asus ROG STRix GL502V laptop.

  1. GqjeMZBrpnf4ZIr6
    GqjeMZBrpnf4ZIr6
    JaFUKtdxnlAWDSfB

    • Remove 10 screws.

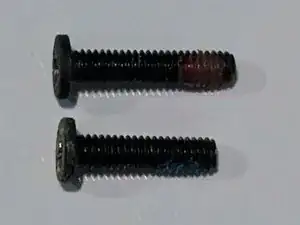

    • Note: front screws (blue) are 10mm long, central and rear (brown) are 12mm.

  2. TwjTP6cASpVDTyQn
    TwjTP6cASpVDTyQn
    cqJiJ5fsRAunNTbb

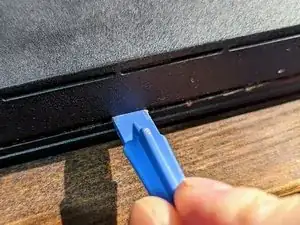

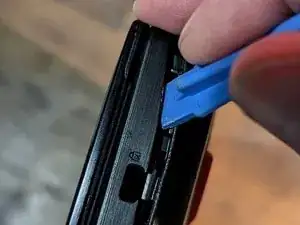

    • With opening tool or pick go around the case starting from back corner.

  3. 4JVtKKn1oUVrRyyw

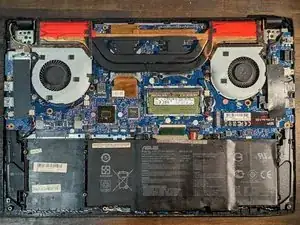

    • Lift cover and now you have access to most of the components.

  4. 3UTTA6m4xhT3Uwpp

    • Disconnect battery connect by pulling it up.

  5. oTjL3hWqqflSNwNR

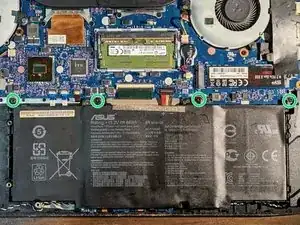

    • Remove 4 screws

  6. nDrTejlLL1JfGnJR

    • Lift battery up and out.

Заключение

To reassemble your device, follow these instructions in reverse order.
