Asus Q325U CPU Fan Replacement

Автор: Matthew Slawson
  • Комментарии: 0
Asus Q325U CPU Fan Replacement

Сложность

Moderate

Шаги

8

Необходимое время

15 минут

Введение

This guide will demonstrate how to replace the CPU fan in your Asus Q325U.

  1. alPVSZF1WCYht1ex
    alPVSZF1WCYht1ex
    2ONPVdrxnbOFSSPC
    lDsLQQ5gxgsJNRFx

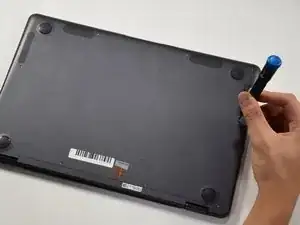

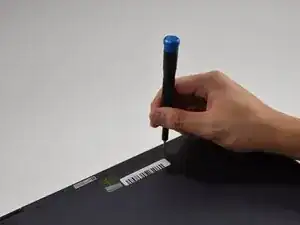

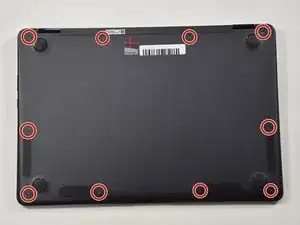

    • Remove the ten 5mm screws using a T5 Torx screwdriver.

  2. fHDwkFbEkq4IsRXg
    fHDwkFbEkq4IsRXg
    KmYIrIM3ZB4pMDE1
    ZmZ6beK6dOOGWlk3

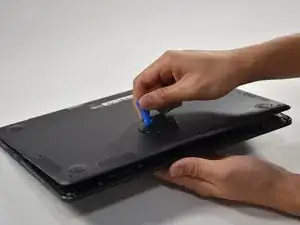

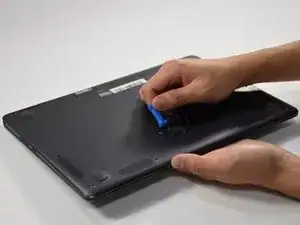

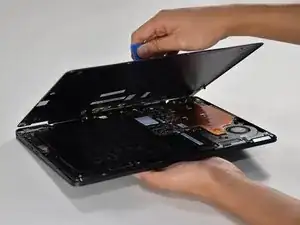

    • Lift the back panel upward using the suction tool.

  3. BLGHyRkL51ODTDyr
    BLGHyRkL51ODTDyr
    1NTym5n5mKdBfCG6

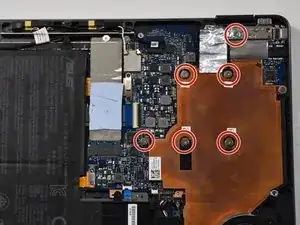

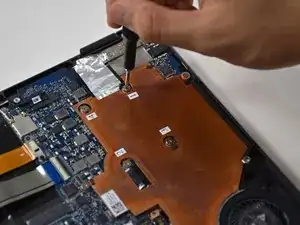

    • Remove the six 3mm screws using a Phillips #00.

  4. pNJdWwafLHwXDjbL
    pNJdWwafLHwXDjbL
    ZQf3LYgniwKNfYFk

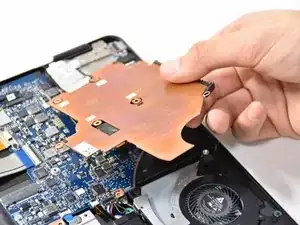

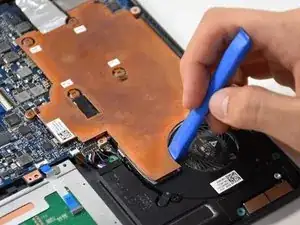

    • Use the plastic opening tool to lift up the edge. Pull upward on the edge.

  5. EYPVbSLqpWLUlMRg
    EYPVbSLqpWLUlMRg
    oHMndBnpKpxAclE3

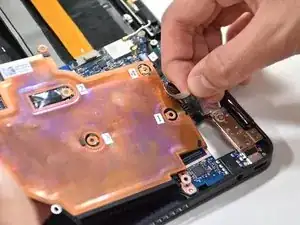

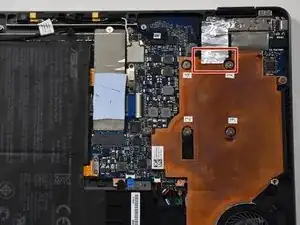

    • On the other side of the plate, remove the tape.

  6. i1hWokcSxKvWtGE6
    i1hWokcSxKvWtGE6
    qRNDyKKmaD5e2GfG

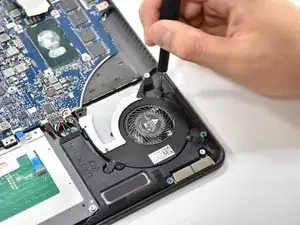

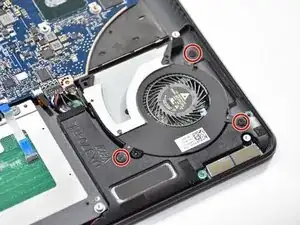

    • Remove the three 3.7 mm screws using a Phillips #00 screwdriver.

  7. MZTjccibmGZJ2GCX

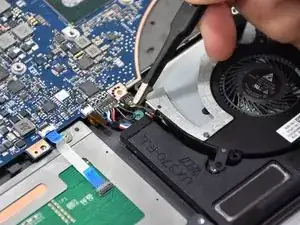

    • Detach the black wire and plug shown using a tweezer.

  8. QOwl4FrvPuOCiwhN

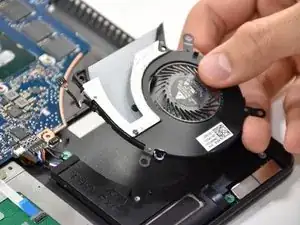

    • Grab CPU fan by its edge and gently pull upwards to remove.

Заключение

To reassemble your device, follow these instructions in reverse order.
