Asus Padfone 2 Battery Replacement

Автор: Zach Standridge
  • Комментарии: 1
Asus Padfone 2 Battery Replacement

Сложность

Moderate

Шаги

3

Необходимое время

Нет оценки

Введение

  1. xDytsMbaK41yqtrL

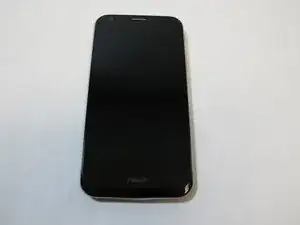

    • Hold down power button to shut off phone.

  2. OZQCH6XajIdrVRhI
    OZQCH6XajIdrVRhI
    gda4GgosBGXDXaXa

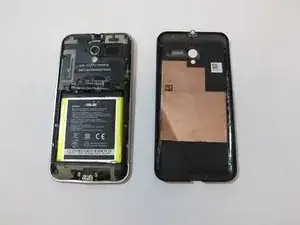

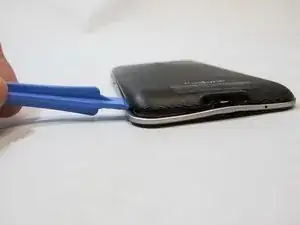

    • Use plastic opening tool to pry off the back cover of the phone.

  3. xBqeKiDgGknUaMBp
    xBqeKiDgGknUaMBp
    H6t2DEmwU36CJdAB
    crdZu1VriWLQVucL

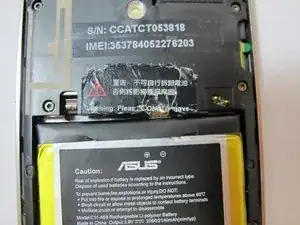

    • Remove the warning sticker that covers the battery plug and connecting cord.

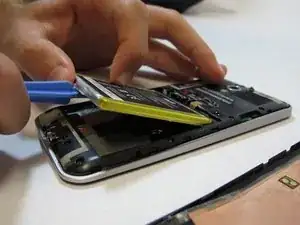

    • Look for the widest gap on either side of the battery. Using the plastic opening tool carefully lift battery out.

    • The battery is held down with adhesive. Be careful not to damage battery or connecting cord

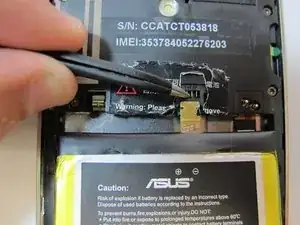

    • Disconnect battery connecting cord using tweezers.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Zach Standridge

Участник c: 25/09/14

350 Репутация

Один комментарий

Pull the battery connector towards USB. You will break it if you pull it up, as I did.

I wouldn’t recommend metal tweezers as it could shortcut the battery.

Los Karlos -
