Asus Padfone 2 A68 Sub Cables Replacement

Автор: Erica
  • Комментарии: 1
Asus Padfone 2 A68 Sub Cables Replacement

Сложность

Moderate

Шаги

6

Необходимое время

Нет оценки

Введение

  1. T1kS2qRKL3mPM1Cy

    • Hold down the power button.

  2. AHZVmgUAPHB5LGTG
    AHZVmgUAPHB5LGTG
    1MQBIMeyNJ5QPFdb
    ReIAhwPuXHNMRHwF

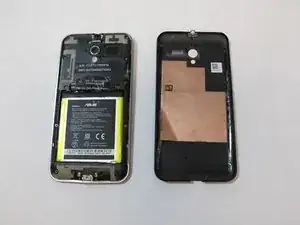

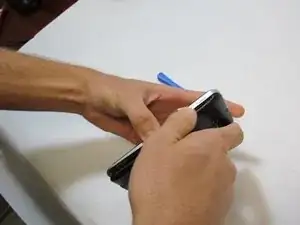

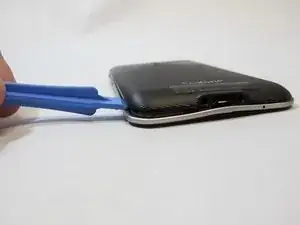

    • Use plastic opening tools to pry off the cover of the phone.

  3. RumWSaAJylUvK4wH
    RumWSaAJylUvK4wH
    U1wVv2YwmDaPRjDJ
    CLEa2fTCoCQggfEk

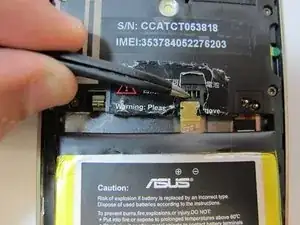

    • Remove the warning sticker that covers the battery plug and connecting cord.

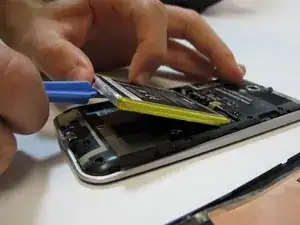

    • Look for the widest gap on either side of the battery. Using the plastic opening tool carefully lift battery out.

    • The battery is held down with adhesive. Be careful not to damage battery or connecting cord.

    • Disconnect battery connecting cord using tweezers.

  4. KQ2Goty6RsfOlsqB
    KQ2Goty6RsfOlsqB
    KMFWPbeGvOJFR6sk

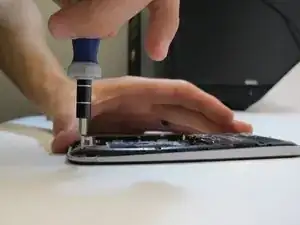

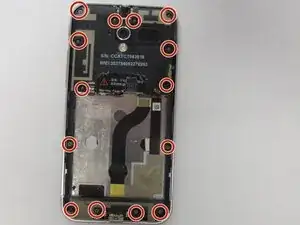

    • Use T5 Torx screwdriver to remove 14 screws from internal back plate.

    • Use of magnetic pad will help with keeping track of screws.

    • Once screws are out, remove the plate.

  5. 4WBVnQmm4dybGoyH

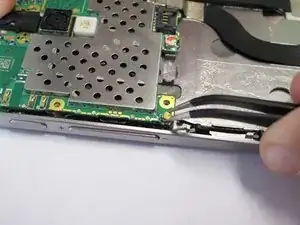

    • Use tweezers to unplug the sub cables from the circuit board and housing.

  6. YgPkf3DgpIZ2DiRK
    YgPkf3DgpIZ2DiRK
    NednXMBSixqJr564

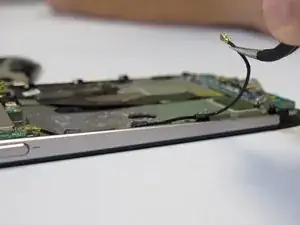

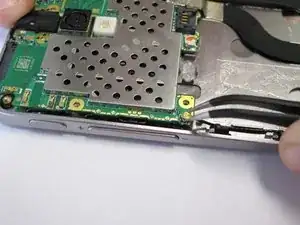

    • Plug in new sub cables to the circuit board and housing.

Заключение

To reassemble your device, follow these instructions in reverse order.
