Asus Eee PC 1201N Hard Drive Replacement

Сложность

Moderate

Шаги

10

Необходимое время

15 минут

Введение

In the event that your Asus Eee PC 1201N's hard drive is faulty this guide will show you exactly how to do that. It will only require a screwdriver and a plastic opening tool.

  1. joVnobRQFHoem1a3

    • Flip the netbook over.

    • Be sure to unplug the netbook and power off the device while working.

  2. bLqOEyRLjVUxew6O

    • Push open both tabs on either side of the battery.

    • The tab on the left will click open and stay in place until you close it.

  3. l3xdVUKCEWTVWO2R

    • Pull the tab on the right open, while you remove battery with your other hand.

    • Pull the battery straight out ensuring that you don't damage any connectors.

  4. PvToDgqiTNcSZUhe
    PvToDgqiTNcSZUhe
    SRQvPbfcuEOS3Of2

    • Open the netbook to find the four small grooves along the top of the keyboard.

    • Pry the keyboard up using the plastic opening tool.

  5. YriPdMBRRh4QnONR
    YriPdMBRRh4QnONR
    5XlxNrjCTSQlUJEK

    • Tilt the keyboard away from you to access the connector. Gently push the lock toward the screen to unlock it and slide the ribbon out.

    • Remove the keyboard.

  6. DPPJLYeFRtQPNbAP

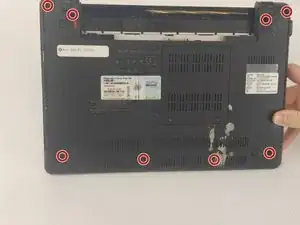

    • Turn the netbook over and remove the eight 6.5mm screws using the J0 Phillips head screwdriver.

  7. qQWE1s4VMA6oERAG
    qQWE1s4VMA6oERAG
    EB3TInTGXkomThuf

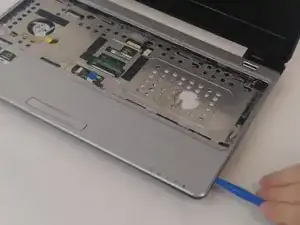

    • Turn the netbook back over and remove the ten 4.5mm screws using the J0 Phillips head screwdriver.

    • Remove the cover plate by sliding the plastic opening tool around the entire edge of the plate.

  8. STPLTGj1wClEcHmM

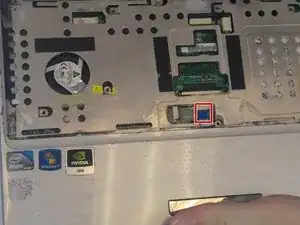

    • Flip up the retaining flap on the ZIF connector. Then, pull the blue tab for the touchpad connector before removing the cover plate completely.

  9. RMh4ZXcZOD3YS1di

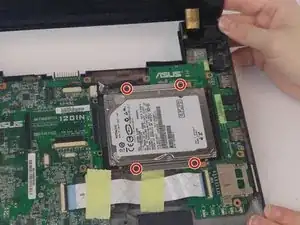

    • Remove the four 4.6mm screws with the J0 Phillips head screwdriver.

  10. kWytSHOjRBMryUeZ
    kWytSHOjRBMryUeZ
    EePqZGldGickRON4

    • Slide the hard drive to the right and then lift it straight out of the netbook.

Заключение

To reassemble your device, follow these instructions in reverse order.
