Asus Eee PC 1005HA RAM Replacement

Сложность

Moderate

Шаги

2

Необходимое время

10 - 15 минут

Введение

Use this guide to replace or upgrade RAM in the Asus Eee PC 1005HA.

Инструменты

Запчасти

  1. mDAGaagEHPlRZxXn
    mDAGaagEHPlRZxXn
    d2AGLtF1vjOZWX5h
    X1cJ4fkIvi1g1kpX

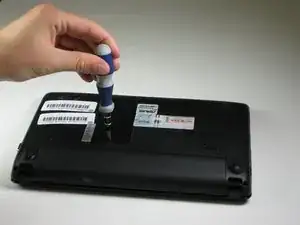

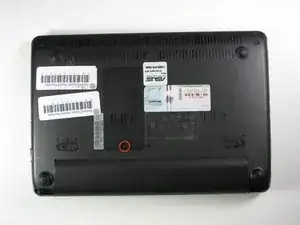

    • Loosen the captive screw in the RAM compartment cover.

    • Remove the RAM compartment cover.

    • This photo shows the battery still attached, but it should be removed prior to removing or replacing the RAM.

  2. qqbQjmnPGaektiOG
    qqbQjmnPGaektiOG
    UTRLVvAsj4l26FfB
    nrI1CAdScrjYGAJW

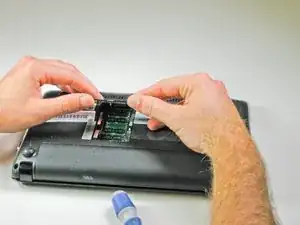

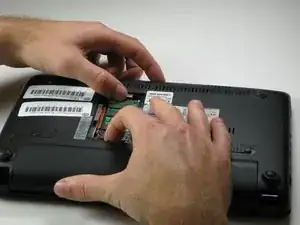

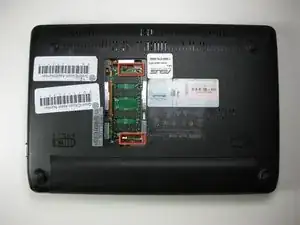

    • Pull the two RAM retaining arms away from the center of the RAM chip.

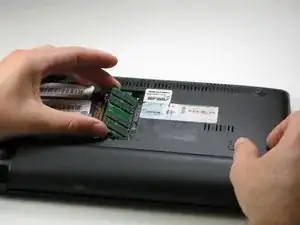

    • Gently pull the RAM chip out of its socket.

Заключение

To reassemble your device, follow these instructions in reverse order.
