Введение
This guide will show you how to replace the motherboard in your Anker Soundcore Space Q45 headphones. You will need to remove the outer casing of the right headphone to access the motherboard.
Инструменты
-
-
Use the iFixit opening tool to disconnect three clips holding the outer covering in place.
-
Clips at 3 o'clock, 7 o'clock and 11 o'clock
-
Image shows right headphone, battery is in left.
-
-
-
Remove three screws holding the inner plastic covering in place with a Phillips screwdriver.
-
Image shows right headphone, battery is in left.
-
-
-
Remove two screws from the motherboard with a Phillips screwdriver.
-

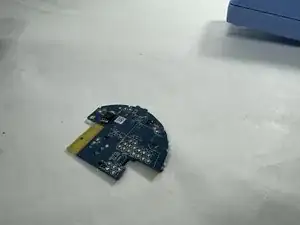

Remove the motherboard from the headphones.
-
To reassemble your device, follow these instructions in reverse order.
