Aluratek ADMPF310F Speakers Replacement

Сложность

Moderate

Шаги

5

Необходимое время

15 - 35 минут

Введение

This guide is for the fix it yourself type of guy who doesn't want to pay for new digital frame. This guide also requires soldering for more on how to solder check the link here.

  1. tFnqqGNPt5hZTUGJ
    tFnqqGNPt5hZTUGJ
    kibIfr5VmkVgnplo
    EFZRSVCHZyGyhU5E

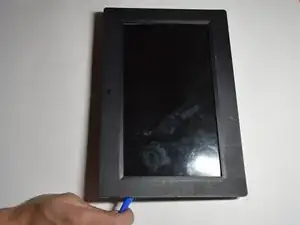

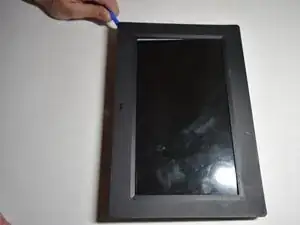

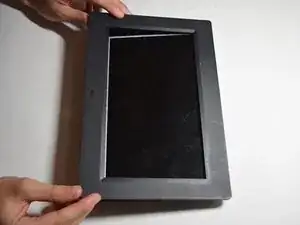

    • Using the plastic opening tool pry off the clips all around the frame. You will hear a popping sound for every clip

    • Be sure not to pry to hard because you could crack or break the plastic facing of the device.

  2. nBAwXubGieWIiJhG

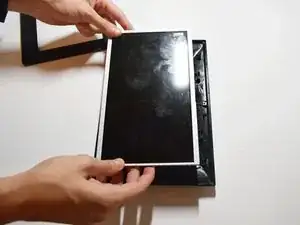

    • Lift screen out of place so you can access the plugs that connect it.

    • Be careful not to pull the screen to far away when placing to the side, many fragile wires are connected.

  3. PTuKVnYbw2xH32uq
    PTuKVnYbw2xH32uq
    Xo4sU2SSHHRdXyFv

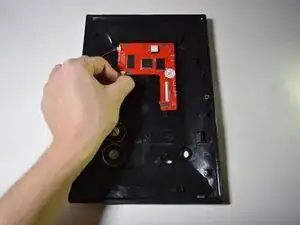

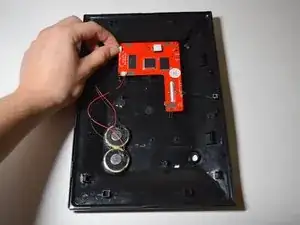

    • Unplug both plugs for the speakers to the motherboard

  4. tBYSXKEU3g6nbsZe
    tBYSXKEU3g6nbsZe
    uu1QRALHScjybtZP

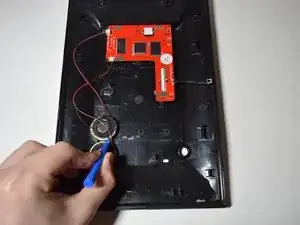

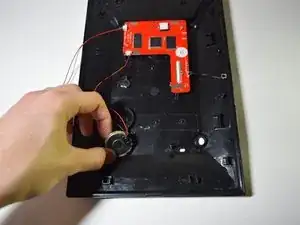

    • Use plastic opening tool to pull out one of the speakers.

    • Then use your hand to take out the other speaker

  5. mXRrscS6GuT3BfNP

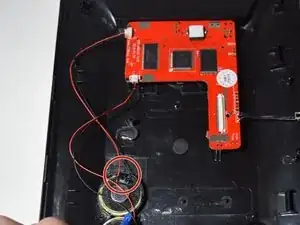

    • Disconnect the wires off of the old speakers and solder the old wires onto the new speakers.

Заключение

To reassemble your device, follow these instructions in reverse order.
