Aluratek ADMPF310F Replacing USB Port Replacement

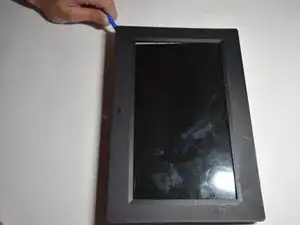

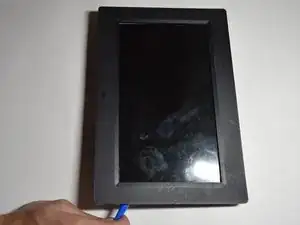

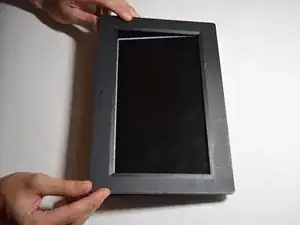

Using the black nylon spudger, pry off the clips all around the frame. You will hear a popping sound for every clip

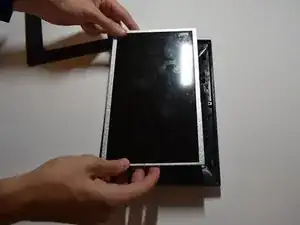

Lift screen out of place so you can access the plugs that connect it.

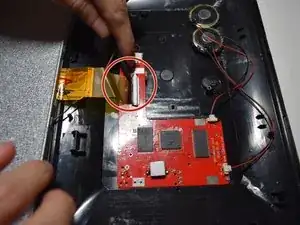

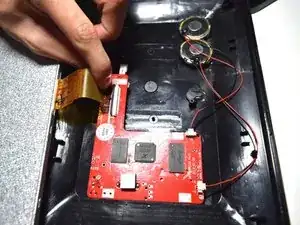

Using the plastic spudger tool lift the plastic zif(zero instertion force) connector clip up.

Pull the ribbon cable away from the mother board.

Disconnect the red and black cable connecting the screen to the motherboard by just pulling it out.

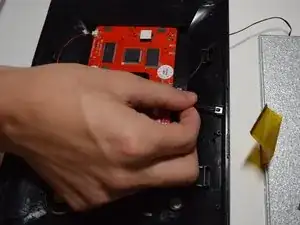

Pull out remote receiver out of its clip.

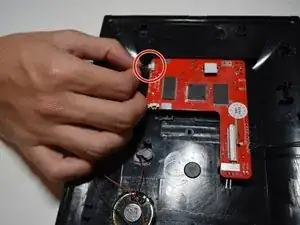

Using fingers pull the first speaker wire that is located closest to the speakers

Again using your fingers, pull out the second speaker wire near the far side of the motherboard.

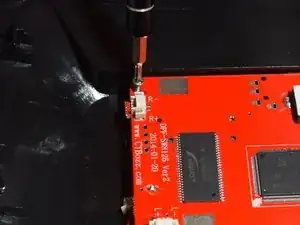

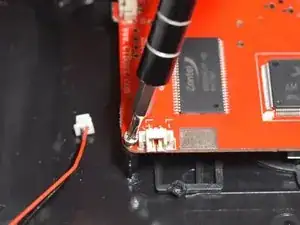

Using the ph0 phillips head screwdriver unscrew the four 4mm screws circled in the picture.

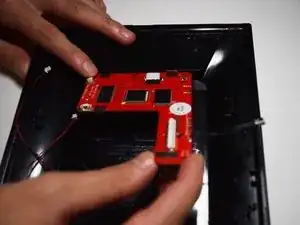

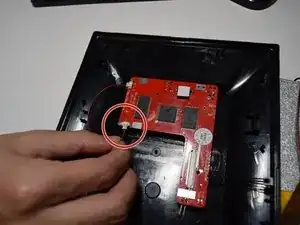

Pull up the smaller end of the motherboard.

Apply force pulling away from the USB ports to get the mother board out of place.

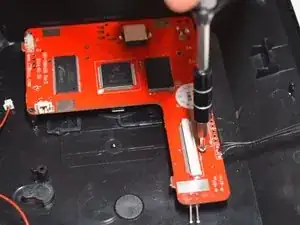

On the back end of the mother board unsolder the USB port at the two points shown.
