Altec Lansing BoomJacket Speaker Replacement

Автор: Ryan Byrnes
  • Комментарии: 2
Altec Lansing BoomJacket Speaker Replacement

Сложность

Moderate

Шаги

8

Необходимое время

10 - 20 минут

Введение

Are your speakers not producing the same amount of BOOM that they used to? Perhaps repairing your speakers is the way to go.

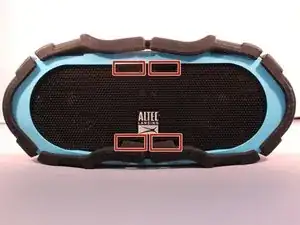

  1. Dww1lNNcSnKEfaOA

    • Using your hands, remove the pegs (4+4) from the front and back of the speaker.

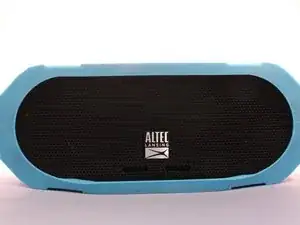

  2. EZcPhuWsTvSIukDF

    • Remove the outer black rubber housing of the speaker.

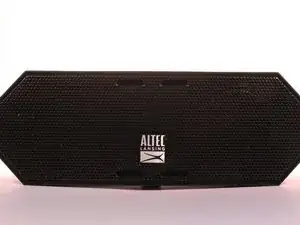

  3. BCe2JsHYDSeAVofm

    • Remove the inner blue rubber housing from the speaker.

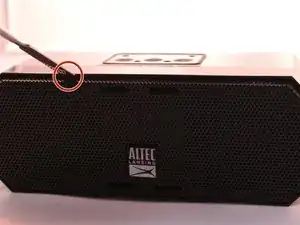

  4. TaMsC2UOaok51QSD

    • Pull out the two black wire meshes using a metal spudger.

    • Be careful not to damage the metal casing.

  5. RFexdyWNTAlBNH2Z
    RFexdyWNTAlBNH2Z
    mGMNuJAc5kH1dDAI

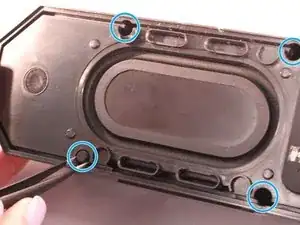

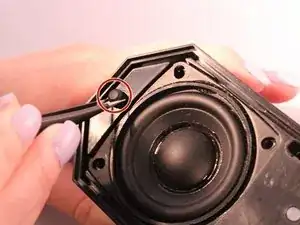

    • Using tweezers remove the rubber stoppers (4 at the back + 2 at the front).

  6. SSqXdmE4QXZNPN2C

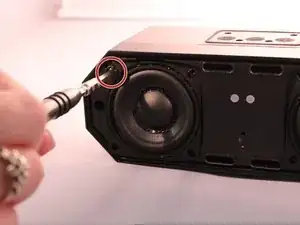

    • Using the size PH1 screwdriver remove the screws (4 around each speaker).

  7. Zr1WZWFvIZTxpSGG

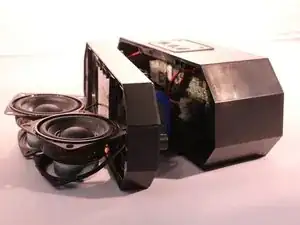

    • Pull the case apart and you will be able to see all the components inside the speaker.

  8. QxXmuUkDnmRtftDw

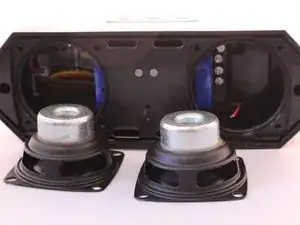

    • Remove the speakers (not entirely because of the wiring) by gently pulling each speaker up.

Заключение

To reassemble your device, follow these instructions in reverse order.
