Введение
The front panel may need to be replaced if it is cracked or damaged.
Инструменты
-
-

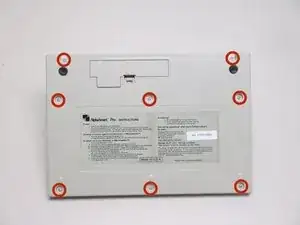

Remove all eight 1 cm Phillips head screws from the back panel of the AlphaSmart Pro with the Phillips #00 Screwdriver.
-

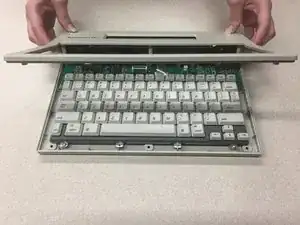

Carefully separate the front panel from the back panel.
-
-
-

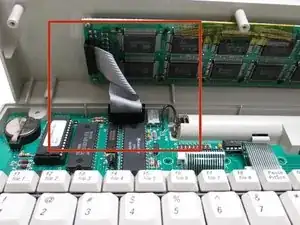

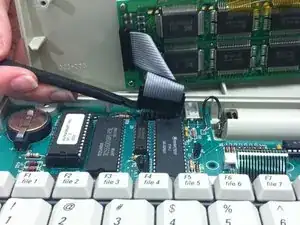

To remove the ribbon cable, use the spudger to lift each side of the connector from the socket.
-

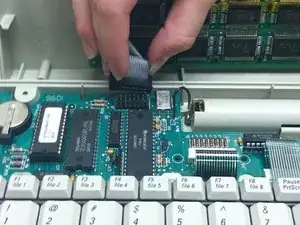

Gently pull up on the connector to completely remove the connector from the socket.
-

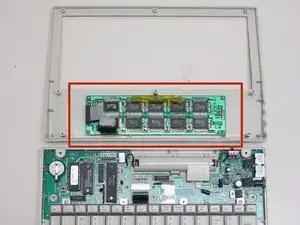

You are now able to separate the front panel from the back panel.
-
-
-

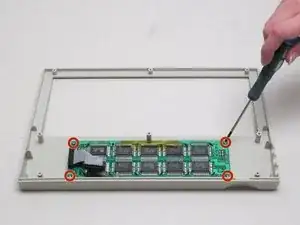

Looking at the front panel, use the Phillips #00 screwdriver to remove the four Phillips head 0.8 cm screws from each corner of the display motherboard.
-

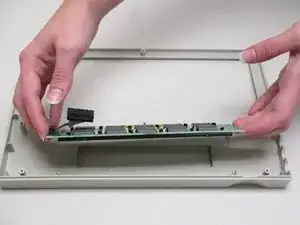

Lift the display screen and motherboard from the plastic front panel to separate the two pieces.
-
To reassemble your device, follow these instructions in reverse order.
