Alienware 17 R3 Display Replacement

Автор: Jonathon Tschurwald
  • Комментарии: 3
Alienware 17 R3 Display Replacement

Сложность

Moderate

Шаги

8

Необходимое время

10 - 15 минут

Введение

This guide will show you how to replace the display for your Alienware 17 R3 laptop. Ensure you have all the necessary tools before starting.

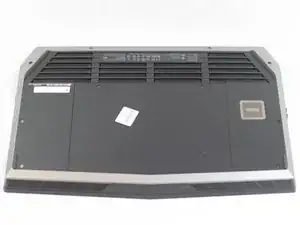

  1. GCMZaOVWhvSknorH

    • Turn the computer off.

    • Disconnect the charging cable from the computer.

    • Failure to unplug the charging cable could result in damaging the computer or seriously injuring yourself.

    • Flip the computer upside down.

    • Wear the anti-static wrist strap to prevent any electrical shock to the components. Shocks may damage the components.

  2. rgxijtxjxT5WecaS

    • Unscrew and remove the two 4mm Phillips screws from cover.

  3. HsNXQps2fCIMc6eO

    • Pull up and slide cover off.

  4. l1eMY3LJA5iU5Aa5
    l1eMY3LJA5iU5Aa5

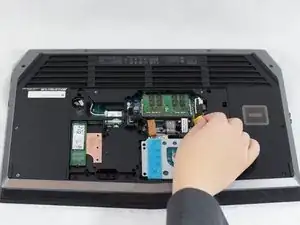

    jOgRsT26NCEKRw2m

    • Unplug the black wire with the yellow tag to disconnect the battery.

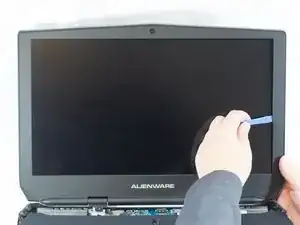

  5. IGvnGXn5hmdTdcDK

    • Using the plastic opening tool, pull display casing away from main body.

    Omg you can't be serious! I watched a YouTube video and went through the trouble of completely removing the whole monitor.

    I have 2 Ifixit kits and never thought to check the ifixit website for a tutorial. This would of saved me an hour

    Alajandro -

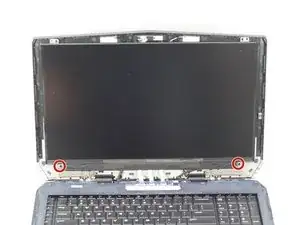

  6. ZgqlMkgaGNuYtEaF

    • Unscrew and remove the two 2mm Phillips screws from the bottom of the display.

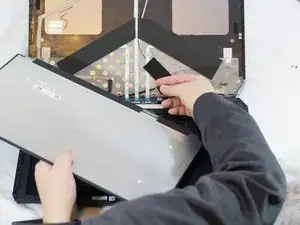

  7. ctnuFKT3kHhSpNNa

    • Disconnect plugs connecting the display to the main body.

  8. RKYSXAdBraAOVwWW

    • Lift display out.

    Where can I buy a replacement screen for my Alienware 17 r3?

    Timothy Kwartler -

Заключение

To reassemble your device, follow these instructions in reverse order.
