Alienware 17 R2 Base Panel Replacement

Автор: Terrence15
  • Комментарии: 0
Alienware 17 R2 Base Panel Replacement

Сложность

Moderate

Шаги

10

Необходимое время

15 - 30 минут

Введение

In this guide, we will be showing you how to remove and replace the Base Panel.

  2. wI1Aa4hL62OaFjUS

    • Close the display and turn the computer over.

    • Make sure PC is turned off!

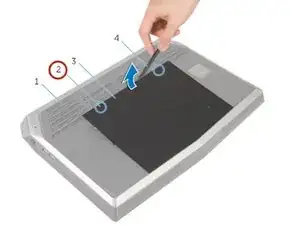

  3. YHmfU4mwNIvyMoAM

    • Loosen the captive screws that secure the base panel to the computer base.

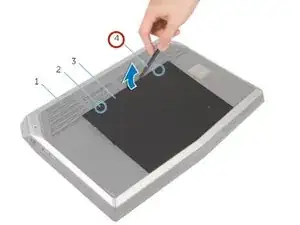

  4. Jdva4HhLn3rKKdyS

    • Using a plastic scribe, gently release the tabs that secure the base panel to the computer base.

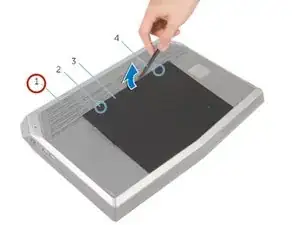

  5. pjHBf4RW1rxH6OfS

    • Slide and remove the base panel from the computer base.

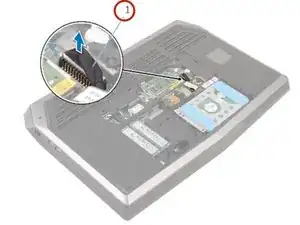

  6. tXmD1vgDfHQEG13v

    • Disconnect the Battery cable from the system board.

    • Turn the computer over.

    • Press and hold power button for 5 seconds to ground the system board.

  9. d6mNxUrbjiOtuuhg

    • Connect the battery cable to the system board.

  10. ftnvVmECbLUDj2OU

    • Tighten the captive screws that secure the base panel to the computer base.

Заключение

To reassemble your device, follow these instructions in reverse order.
