If you need to replace the battery in your Alcatel IdealXCITE because it won’t hold a charge or turn on, you should use the following guide. The Alcatel IdealXCITE contains a lithium ion battery which can short out and catch fire, proceed with caution and do not puncture the battery.

Запчасти

  1. IhCqmRDribbXhKhP
    IhCqmRDribbXhKhP
    QbBtEnQIAJMClxRe
    pEHstrdhEXGbmsHc

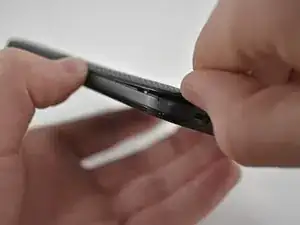

    • Place your finger in the small notch on the left corner of the phone.

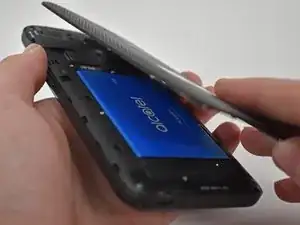

    • Use your finger to gently pull up on the back cover where the notch is located.

    • Gently pull up on the back cover, working around the phone.

    • Remove the cover from the phone, and set it aside for later installation.

  2. o3tfj2cfrrQoEiXu
    o3tfj2cfrrQoEiXu
    6nfyt2bgIMqLYBir
    xRbSOr5WUq1tldIg

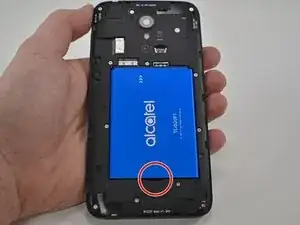

    • Place your thumb in the small notch between the battery and the phone.

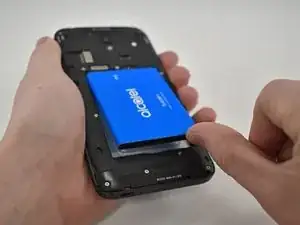

    • Use your thumb to gently pry the battery up at the notch, releasing it from the phone.

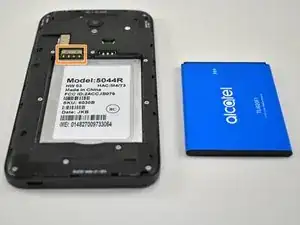

    • Take note of the contacts in the phone and on the battery for reinstallation.

Заключение

In order to reassemble your device, follow the instructions in reverse order.
