Acer Iconia A1-810 Motherboard Replacement

Автор: John

Комментарии: 14

Acer Iconia A1-810 Motherboard Replacement

Сложность

Moderate

Шаги

Необходимое время

5 - 10 минут

Введение

Replace the motherboard in a Acer Iconia A1-810.

Инструменты

Шаг 1

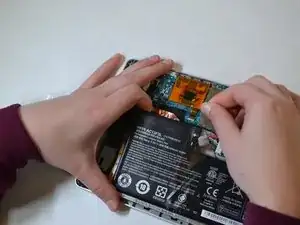

Remove the back cover by lifting with a plastic opening tool, below the camera button slot.

I found my thumbnail worked better, and starting near one of the corners. The picture shows the tool inserted where it could easily damage the SD card mechanism.

James Dellar - 18/10/16

Шаг 2

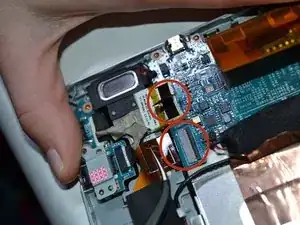

Remove the black tape connecting the battery to the motherboard.

Шаг 3

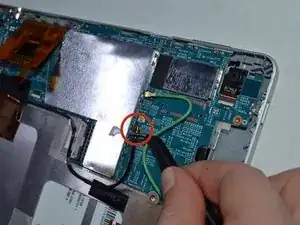

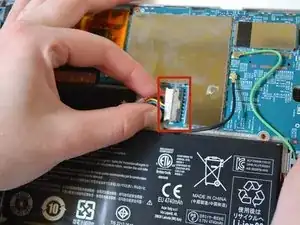

Pinch the sides of the white resistor to safely remove it without damaging it or yourself.

This is a white connector, and it is easy to get fingernails to both ends to pull it out of the metal socket.

James Dellar - 18/10/16

Шаг 4

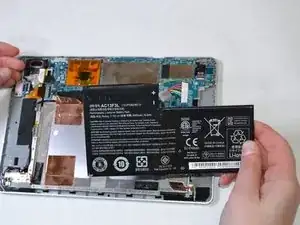

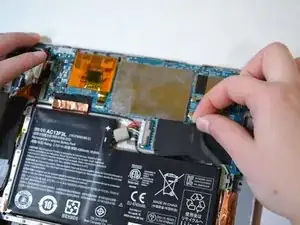

Remove battery from adhesive.

There is a clear plastic tab to pull (being used in the photo), which lifts the battery in one, and unsticks it from the 2 or 3 sticky pads.

James Dellar - 18/10/16

Berapaan Harga Batrenya Gan

Oppo Popular - 28/02/20

Шаг 5

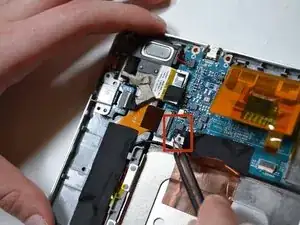

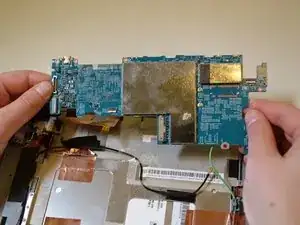

Use a Phillips #000 screwdriver to remove the screws around the perimeter of the motherboard.

A No 0 cross point screwdriver worked perfectly well for these. There was a small black Acer sticker covering the one at the top right. All circled screws are the same length. In my case there was a small retaining plate between the two screws either side of the HDMI port (top left). The two screws in the rectangle at the left were significantly longer.

James Dellar - 18/10/16

Шаг 6

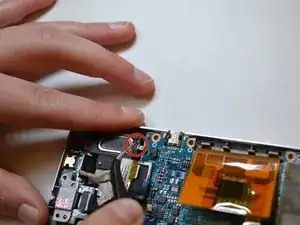

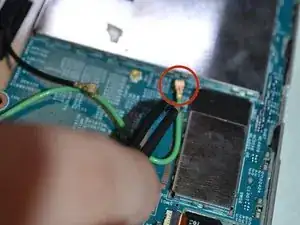

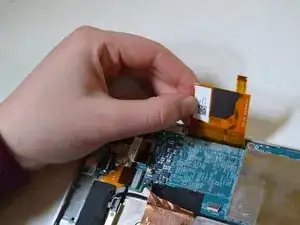

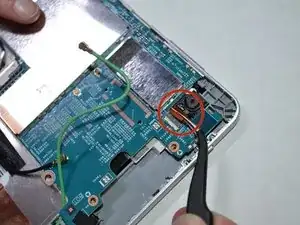

Disconnect the resistor attached to the orange tab by sliding the tail out.

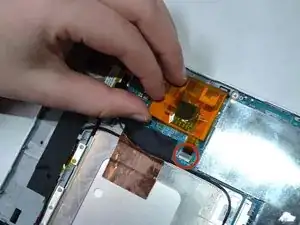

Pry open the orange tab near the top left corner.

Disconnecting this was fiddly. It was even more fiddly to replace. The dark grey part of the connector on the board stays in place, and you need to slide the tail inside it. The orange tab was taped down at one edge.

James Dellar - 18/10/16
