Acer Aspire V5-571-6889 Keyboard Replacement

Автор: Joe Niu
  • Комментарии: 0
Acer Aspire V5-571-6889 Keyboard Replacement

Сложность

Moderate

Шаги

4

Необходимое время

20 минут

Введение

This guide is to show how to replace the Acer Aspire V5-571 keyboard.

Инструменты

Запчасти

  1. VcASAYcEWQyEEmjd

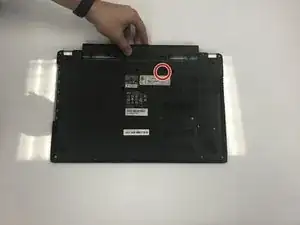

    • Unlock the battery by pushing the button to the right.

  2. UvjBMyGosZD2svmF

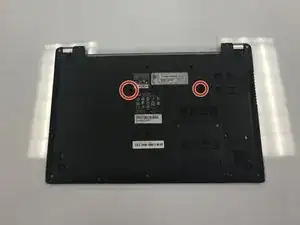

    • Unscrew the two 8 mm Phillips #0 screws attached to the keyboard.

  3. PDhVdZDVTuZ2mlaq

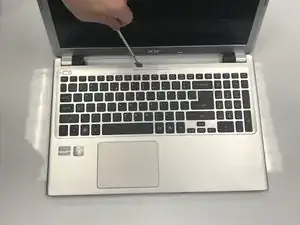

    • Pry open the keyboard at the top of the keyboard.

  4. r4Uc4ZhRNKdInKQH

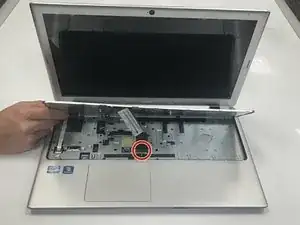

    • Disconnect the keyboard label connected to the laptop.

Заключение

To reassemble your device, follow these instructions in reverse order.
