Acer Aspire V5-571-6889 CPU Fan Replacement

Автор: Joe Niu
  • Комментарии: 0
Acer Aspire V5-571-6889 CPU Fan Replacement

Сложность

Moderate

Шаги

9

Необходимое время

35 минут

Введение

Does the laptop screen not show complete images? Replace it.

  1. NN1BZlwjhY1cYJOW

    • Unlock the battery by pushing the button to the right.

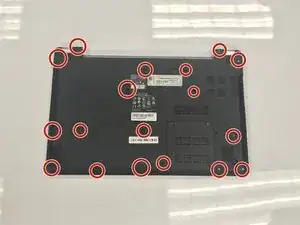

  2. ElHmtW2gBRl2lgbU

    • Unscrew the eighteen 8 mm Phillips #0 screws attached to the laptop.

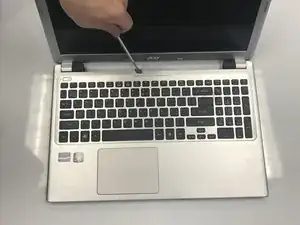

  3. suyRULCmHifHW6DT

    • Pry open the keyboard at the top of the keyboard.

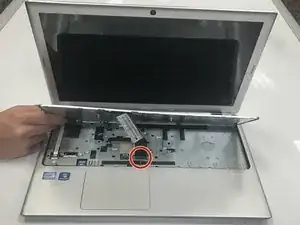

  4. BAMUgEXEyTZCjiU6

    • Disconnect the keyboard label connected to the laptop.

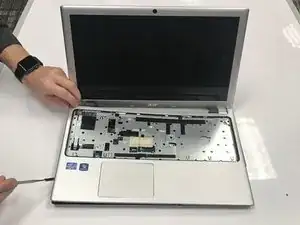

  5. kCpqlZJpjleDRKoS

    • Carefully pry open the keyboard frame.

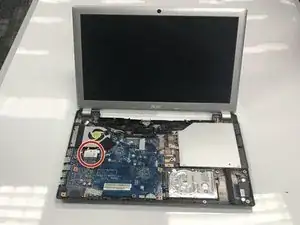

  6. Zi2LLwJTYxaXchFZ

    • Locate the Wi-Fi card.

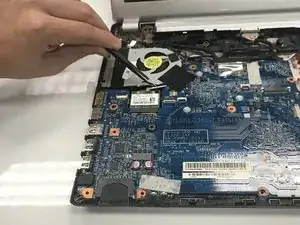

  7. 3WmSDatQamNxoCaO

    • Disconnect the two wires connected to the Wi-Fi card.

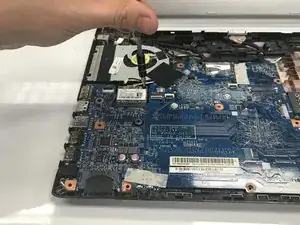

  8. KIxLcSnlPy3KWFhS

    • Unscrew the two 8mm Philips #0 screws attached to the Wi-Fi card.

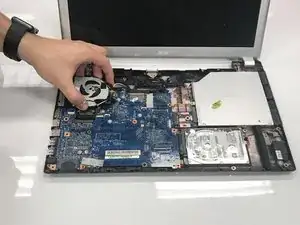

  9. peJjbEfrGljSh5Pk

    • Carefully remove the CPU fan.

Заключение

To reassemble your device, follow these instructions in reverse order.
