This guide will show you how to replace the hard drive in your Acer Aspire R7-371T-72CF.
Инструменты
-
-
Turn off your laptop and disconnect the power adapter.
-

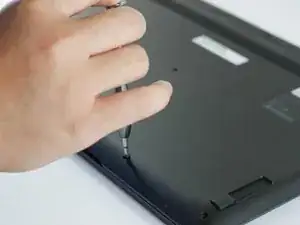

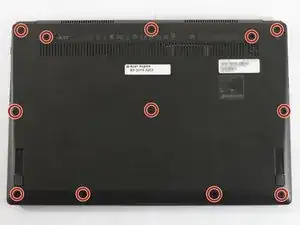

Locate and remove all 12 Phillips #00 6mm screws on the backside of the laptop.
-
-
-

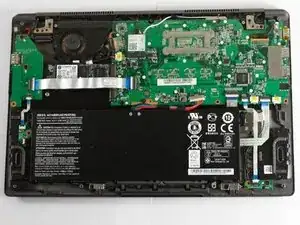

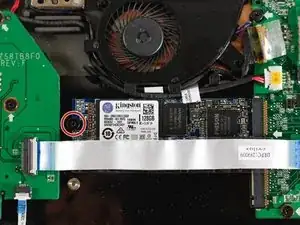

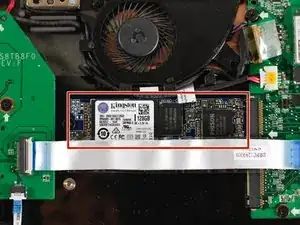

Locate the hard drive, as shown to the left. This can be identified by its location underneath the cooling fan and above the ribbon cable (the long horizontal white strip).
-
Заключение
To reassemble your device, follow these instructions in reverse order.
The three screws along the hinge edge will not come out. They turn but make clicking sound and seem to still hold the case back to the chassis.
How do I get the back off?
